12 kVDC PeeWee Series Right Angle Plug Cable Assembly
12 kVDC PeeWee Series Right Angle Plug Cable Assembly
SKU:HIG-03c3cb
High-voltage 12 kVDC PeeWee Series right angle plug cable assembly for secure and reliable connections in high voltage applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
12 kVDC PeeWee Series Right Angle Plug Cable Assembly
$99.99
Quantity: 1
Claim Your Seller Account
12 kVDC PeeWee Series Right Angle Plug Cable Assembly
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

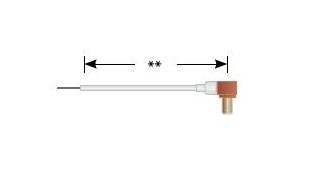

The 12 kVDC PeeWee Series Right Angle Plug Cable Assembly is a subminiature, high-voltage connector designed for high voltage applications requiring dense electronic packaging. Featuring Teledyne Reynold's patented Advanced Interface™ technology, this connector is rated at 12 kVDC at 70,000 feet altitude with a wide temperature range of -55°C to 125°C. With a push-pull coupling style and compatibility with threaded plug assemblies, this assembly ensures secure and reliable connections in demanding environments.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.050 in
Contact Properties Contact Design
Split Finger, Closed Entry, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plate with CRES Hood
Contact Properties Contact Size
24 AWG
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Right Angle Plug Cable Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with threaded plug assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Etched FEP NOMEX®
Specifications Wire Pn
178-8111
