12 kVDC PeeWee Series Right Angle Plug Cable Assembly with NOMEX®
12 kVDC PeeWee Series Right Angle Plug Cable Assembly with NOMEX®
SKU:HIG-a89be4
High-voltage 12 kVDC PeeWee Series plug cable assembly with NOMEX® jacket for dense electronic packaging. Rated at 12 kVDC, -55°C to 125°C. Ideal for lasers, photomultipliers, power supplies, TWT.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
12 kVDC PeeWee Series Right Angle Plug Cable Assembly with NOMEX®
$89.99
Quantity: 1
Claim Your Seller Account
12 kVDC PeeWee Series Right Angle Plug Cable Assembly with NOMEX®
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

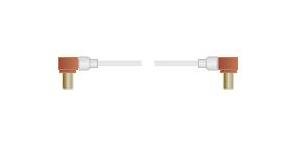

The 12 kVDC PeeWee Series Plug Cable Assembly is designed for high voltage applications requiring dense electronic packaging. Utilizing Teledyne Reynolds' Advanced Interface™ technology, this double-ended right angle assembly is rated at 12 kVDC at 70,000 feet with a wide operating temperature range of -55°C to 125°C. With features like push-pull coupling, silicone rubber encapsulation, and compatibility with various mating connectors, it ensures reliable performance in demanding environments like lasers, photomultipliers, power supplies, and TWT applications.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.060 in
Contact Properties Contact Design
Split Finger, Closed Entry, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plate with CRES Hood
Contact Properties Contact Size
24 AWG
Contact Properties Contact Type
Female
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type

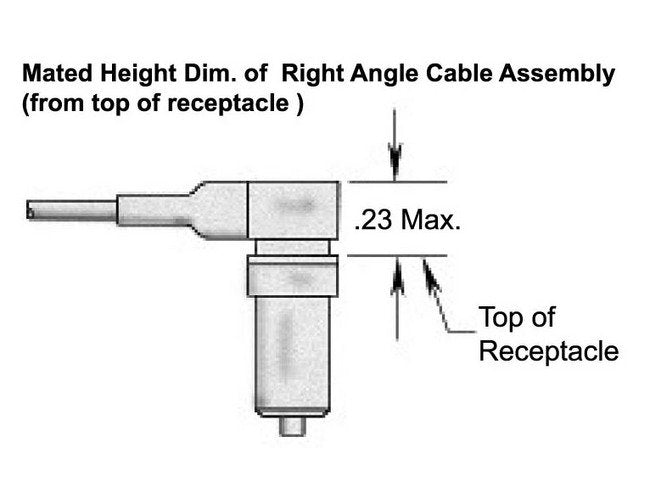

Double-Ended Right Angle Plug Cable Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all non-threaded Pee-Wee series receptacles and receptacles cable assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Silicone Coated FEP with Nomex® Jacketed
Specifications Wire Pn
178-5789
