12 kVDC PeeWee Series Right Angle Plug Cable Assembly with NOMEX®
12 kVDC PeeWee Series Right Angle Plug Cable Assembly with NOMEX®
SKU:HIG-d083db
High-performance 12 kVDC PeeWee Series Plug Cable Assembly for compact high voltage applications, featuring NOMEX® insulation and advanced sealing technology.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
12 kVDC PeeWee Series Right Angle Plug Cable Assembly with NOMEX®
$59.99
Quantity: 1
Claim Your Seller Account
12 kVDC PeeWee Series Right Angle Plug Cable Assembly with NOMEX®
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

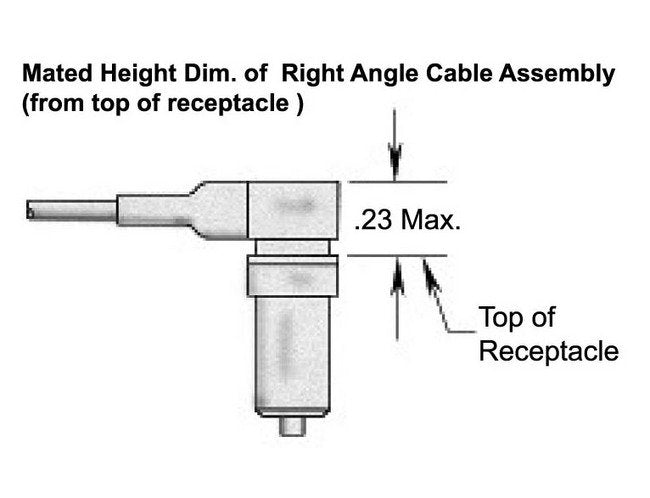

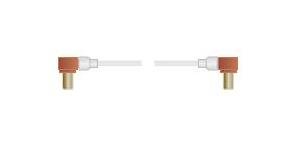

The 12 kVDC PeeWee Series Plug Cable Assembly features a double-ended right angle design with NOMEX® insulation, ideal for high voltage applications in compact electronic setups. Utilizing Teledyne Reynold's Advanced Interface™ for high voltage sealing, this assembly is rated for 12 kVDC at altitudes up to 70,000 feet. With a broad temperature range of -55°C to 125°C, this connector ensures reliable performance in challenging environments. Designed for compatibility with various devices, the PeeWee connector is a standard part with exceptional quality and safety features.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.050 in
Contact Properties Contact Design
Split Finger, Closed Entry, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plate with CRES Hood
Contact Properties Contact Size
24 AWG
Contact Properties Contact Type
Female
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Right Angle Plug Cable Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all non-threaded Pee-Wee series receptacles and receptacles cable assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Etched FEP W/NOMEX
Specifications Wire Pn
178-8118
