12 kVDC PeeWee Series Single-Ended Plug Cable Assembly
12 kVDC PeeWee Series Single-Ended Plug Cable Assembly
SKU:HIG-d05666
12 kVDC PeeWee Series high-voltage connector with threaded coupling for dense electronic packaging, rated up to 70,000 ft., -55°C to 125°C.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
12 kVDC PeeWee Series Single-Ended Plug Cable Assembly
$39.99
Quantity: 1
Claim Your Seller Account
12 kVDC PeeWee Series Single-Ended Plug Cable Assembly
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

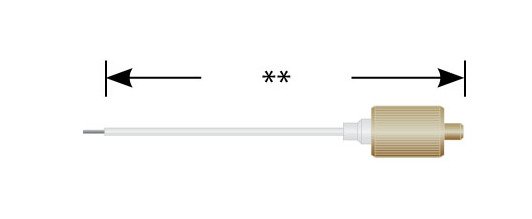

The 12 kVDC PeeWee Series Single-Ended Plug Cable Assembly is a subminiature high-voltage connector designed for dense electronic packaging in high voltage applications. Utilizing Teledyne Reynold's patented Advanced Interface™ method, it seals high voltage at reduced atmospheric pressure, rated at 12 kVDC at 70,000 feet. With an operating temperature range of -55°C to 125°C, threaded coupling, and compatibility with various applications including lasers, photomultipliers, and power supplies, this non-standard part provides reliability and performance for critical operations.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.050 in
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Size
24 AWG
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type

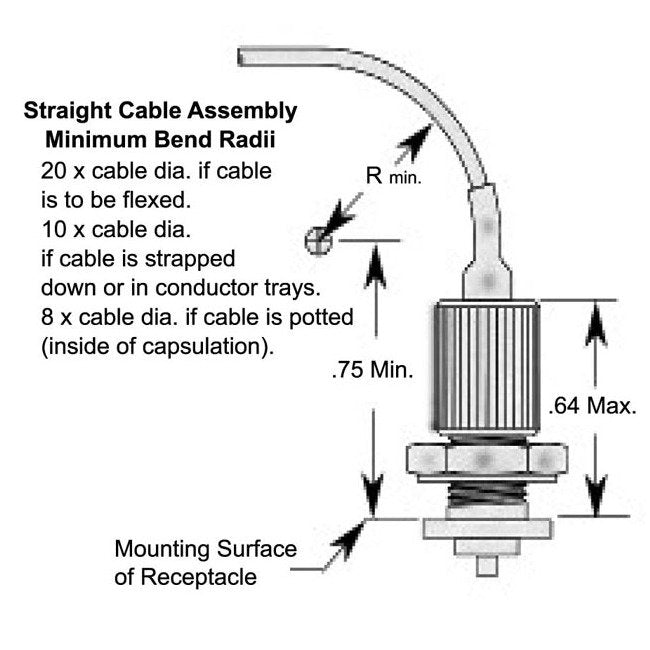

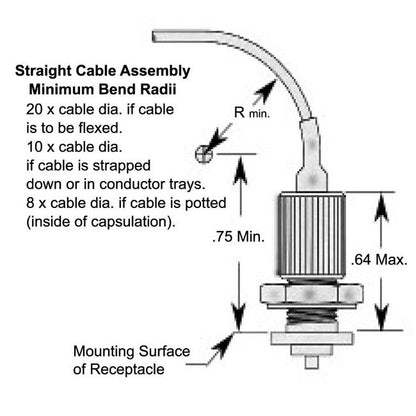

Single-Ended Straight Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all non-threaded PeeWee series plug assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Etched FEP
Specifications Wire Pn
178-8118
