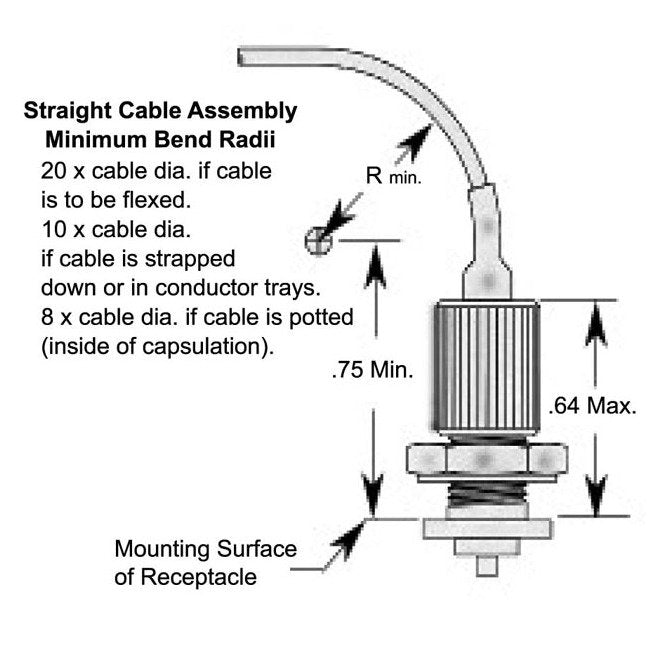

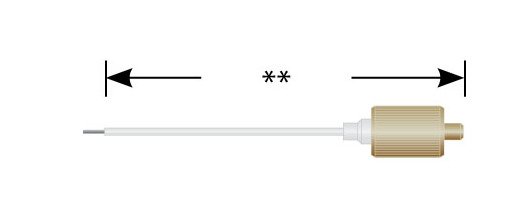

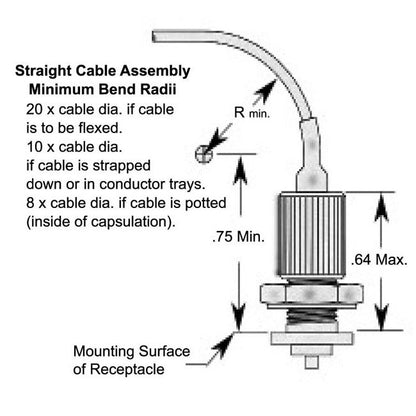

The 12 kVDC PeeWee Series Straight Plug Cable Assembly is a subminiature, high-voltage connector designed for dense electronic packaging in high voltage applications. Featuring Teledyne Reynold's patented Advanced Interface™ method, this connector is rated for 12 kVDC at 70,000 feet and operates within a wide temperature range of -55°C to 125°C. With a threaded coupling style and compatibility with all non-threaded PeeWee series plug assemblies, this assembly ensures secure connections for critical equipment like lasers, photomultipliers, and power supplies.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.060 in
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Size
24 AWG
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Straight Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all non-threaded PeeWee series plug assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Silicone Coated FEP
Specifications Wire Pn
178-8066
