12 kVDC PeeWee Series Threaded Double-Ended Plug Cable Assembly
12 kVDC PeeWee Series Threaded Double-Ended Plug Cable Assembly
SKU:HIG-05621d
12 kVDC PeeWee Series Double-Ended Plug Cable Assembly for high voltage applications. Threaded coupling, rated at 70,000 ft altitude, -55°C to 125°C.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
12 kVDC PeeWee Series Threaded Double-Ended Plug Cable Assembly
$29.99
Quantity: 1
Claim Your Seller Account
12 kVDC PeeWee Series Threaded Double-Ended Plug Cable Assembly
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

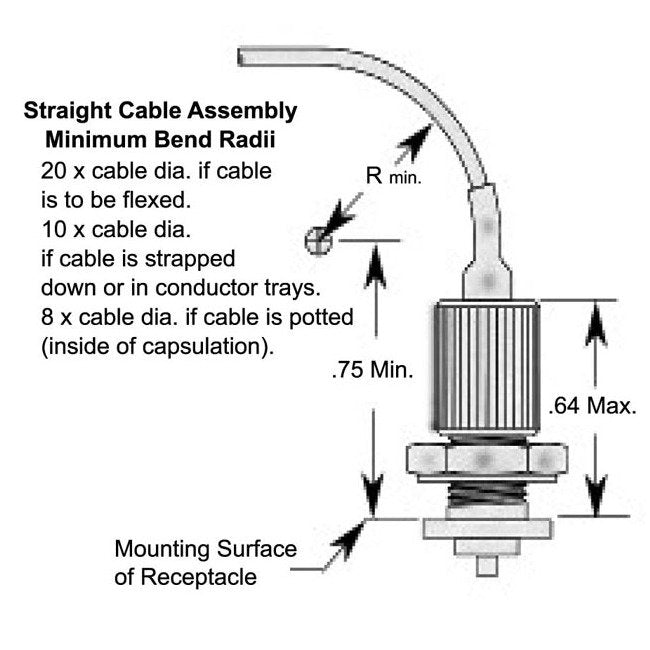

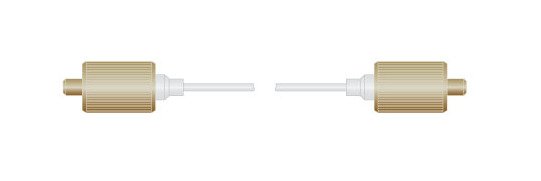

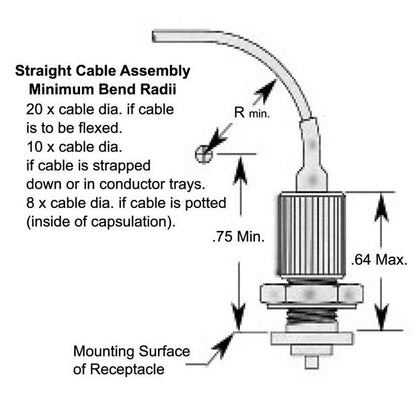

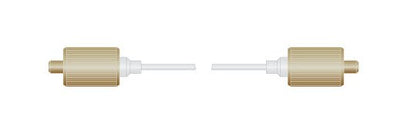

The 12 kVDC PeeWee Series Threaded Double-Ended Plug Cable Assembly is a subminiature high-voltage connector designed for dense electronic packaging in high voltage applications. Utilizing Teledyne Reynold's Advanced Interface™ sealing method, this connector is rated at 12 kVDC at 70,000 feet altitude with a wide operating temperature range of -55°C to 125°C. With a current rating of 1.6 Amp and a threaded coupling style, it mates seamlessly with PeeWee series threaded receptacles and threaded receptacle cable assemblies. The back end of the connector is encapsulated with silicone rubber for added durability. Ideal for applications including lasers, photomultipliers, power supplies, and TWT.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.060 in
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Size
24 AWG
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all Pee-Wee series threaded receptacles and threaded receptacles cable assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Silicone Coated FEP
Specifications Wire Pn
178-8066
