The 12 kVDC Right Angle Double-Ended Plug Cable Assembly from the PeeWee Series is designed for high voltage applications requiring compact connectors. Utilizing Teledyne Reynold's patented Advanced Interface™ method, this connector maintains a 12 kVDC rating at 70,000 feet with a wide temperature range of -55 to 125 °C. With a threaded coupling style and compatibility with various Pee-Wee series components, it offers reliable performance in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
LasersPhotomultipliersTWTPower Supplies
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.060 in
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Size
24 AWG
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type

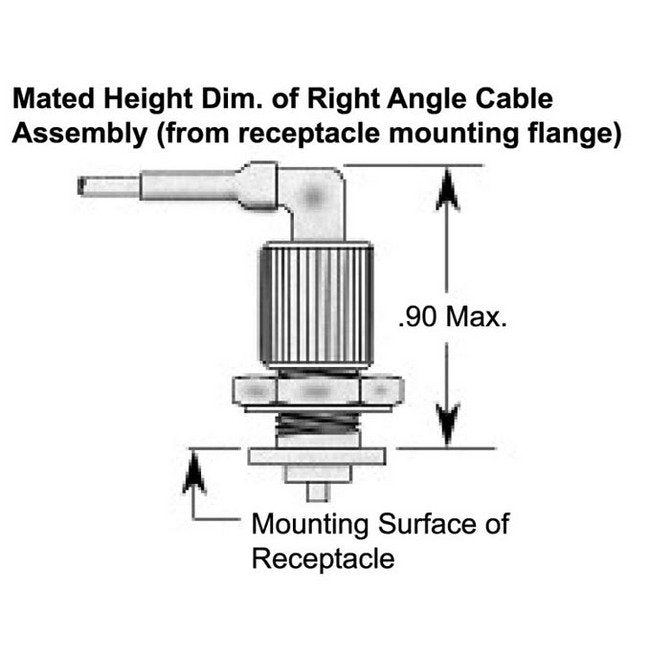

Double-Ended Right Angle Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all Pee-Wee series threaded receptacles and threaded receptacles cable assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Silicone Coated FEP with Nomex® Jacketed
Specifications Wire Pn
178-5789
