12 kVDC Single-Ended Receptacle Cable Assembly
12 kVDC Single-Ended Receptacle Cable Assembly
SKU:HIG-2fb4bf
High-voltage cable assembly for dense electronic packaging, rated at 12 kVDC with wide temperature range. Ideal for high voltage applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
12 kVDC Single-Ended Receptacle Cable Assembly
$249.99
Quantity: 1
Claim Your Seller Account
12 kVDC Single-Ended Receptacle Cable Assembly
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

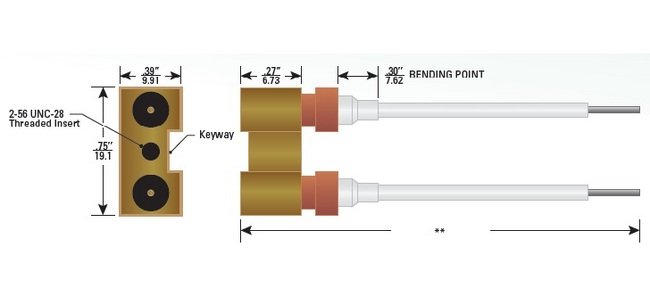

The 12 kVDC Single-Ended Receptacle Cable Assembly from the Pee-Wee Series is a subminiature, high-voltage connector designed for dense electronic packaging in high voltage applications. Featuring Teledyne Reynold's patented Advanced Interface⢠method, this connector is rated at 12 kVDC at 70,000 feet altitude with a wide operating temperature range of -55 °C to 125 °C. With insulator material made of plastic, threaded or jack screw coupling style, and silicone coated FEP wire insulation, this assembly ensures reliable performance in demanding environments.
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Coupling Nut Properties Coupling Nut Finish
Nickel Plated
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Assembly Type
Single-Ended Receptacle Cable Assembly
Specifications Braid Termination
Band
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Threaded or Jack Screw
Specifications Insulator Material
Plastic
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Number Of Contacts
2
Specifications Operating Temperature
-55 to 125 ºC
Specifications Series
PeeWee
Specifications Test Voltage At 70000 Ft
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Silicone Coated FEP
Wire Specifications Conductor Awg
24
Wire Specifications Conductor Plating
SPC
Wire Specifications Conductor Strands
19/36
Wire Specifications Insulation Material
Silicone Coated FEP
Wire Specifications Insulator Diameter
0.060 in | 1.52 mm
Wire Specifications Operating Voltage
18 kVDC
