12 kVDC Single Pin Panel Receptacle, Rear Mount
12 kVDC Single Pin Panel Receptacle, Rear Mount
SKU:HIG-3430e0
High voltage 12 kVDC Single Pin Panel Receptacle with advanced sealing, threaded coupling, and rear mounting for secure connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
12 kVDC Single Pin Panel Receptacle, Rear Mount
$29.99
Quantity: 1
Claim Your Seller Account
12 kVDC Single Pin Panel Receptacle, Rear Mount
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12 kVDC Single Pin Panel Receptacle from the PeeWee Series is designed for high voltage applications requiring compact connectors. Featuring Teledyne Reynold's Advanced Interface™ sealing method, this connector is rated at 12 kVDC at 70,000 feet with a wide operating temperature range of -55°C to 125°C. With a threaded coupling style and rear panel mounting, it ensures secure connections in demanding environments. The plastic insulator material, 1.6 Amp current rating, and compatibility with threaded plug cable assemblies make it ideal for lasers, photomultipliers, power supplies, and TWT applications.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Size
24 AWG
Contact Properties Contact Type
Male
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle
Specifications Coupling Style
Threaded
Specifications Current Rating
1.6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with threaded plug cable assemblies.
Specifications Operating Temperature
-55 to 125 ºC

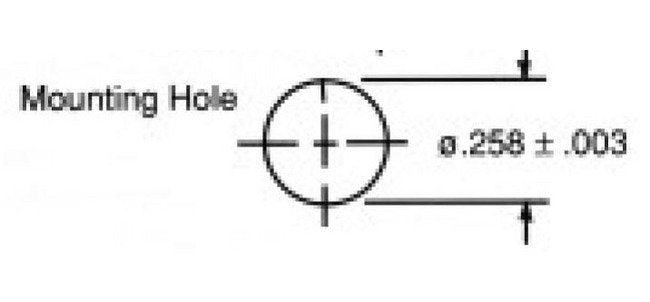

Specifications Panel Mounting Style
Rear Mount
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
