12 Series Circuit Board Supports with Keyslot x .156 Hole

Name: 12 Series Circuit Board Supports with Keyslot x .156 Hole
Brand: All Electronics Hardware
SKU: 01C-ebe0cf
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-ebe0cf

Durable 12 Series Circuit Board Supports with Keyslot x .156 Hole for secure and easy board mounting. Pack of 500 in natural color.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 12 Series Circuit Board Supports with Keyslot x .156 Hole offer a reliable solution for mounting circuit boards. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports are durable and easily removable for repairs. With a temperature range of -40 to 185F (-40 to 85C), they ensure stability in various environments. Measuring .750 inches in length, with a board hole diameter of .156 inches and a board thickness of .062 inches, these supports meet ASTM D 4066 and PA111 standards. Each pack contains 500 pieces in a natural color, making them ideal for circuit board installations.

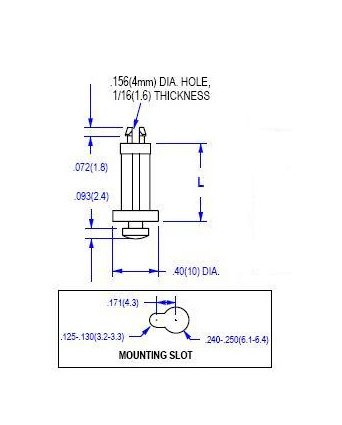

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Board Thickness

.062 (1.57) inches (mm)

Specifications Dim L

.750 (19.1) inches (mm)

Specifications Material Code

UL94V-2

Specifications Remarks Board Thickness

Board Thickness is for both ends.

12 Series Circuit Board Supports with Keyslot x .156 Hole
