12 Series Keyslot Circuit Board Supports, .156 Hole

Name: 12 Series Keyslot Circuit Board Supports, .156 Hole
Brand: All Electronics Hardware
SKU: 01C-09abf9
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-09abf9

Precision-engineered 12 Series Keyslot circuit board supports for secure and reliable installations, featuring nylon material and ASTM D 4066 compliance.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

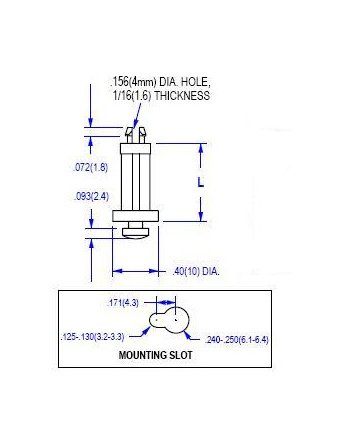

Enhance your circuit board support with the 12 Series Keyslot with .156 hole diameter. Made of Nylon 66 UL94V-2 material, these supports are easily installed and removable for repairs. With ASTM D 4066 and RoHS compliance, these supports provide reliability and durability in a temperature range of -40 to 185F (-40 to 85C). The .375 inches length and .062 inches board thickness ensure secure board placement, meeting the highest standards for your electronic assemblies.

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Board Thickness

.062 (1.57) inches (mm)

Specifications Dim L

.375 (9.6) inches (mm)

Specifications Material Code

UL94V-2

Specifications Remarks Board Thickness

Board Thickness is for both ends.
