12 Series Keyslot Circuit Board Supports with .156 Hole
12 Series Keyslot Circuit Board Supports with .156 Hole
SKU:01C-8061e5
Secure and durable 12 Series Keyslot Circuit Board Supports for precise installations. RoHS compliant and meets UL standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
12 Series Keyslot Circuit Board Supports with .156 Hole
$24.99
Quantity: 1
Claim Your Seller Account
12 Series Keyslot Circuit Board Supports with .156 Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

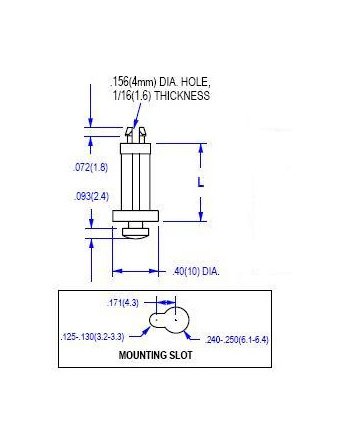

The 12 Series Keyslot x .156 Hole Circuit Board Supports are engineered for secure and versatile PCB installations. Crafted from high-grade Nylon 66 UL94V-2 material (UL94V-0 available), these supports ensure durability and safety. With a board hole diameter of .156 inches and a board thickness of .062 inches, they offer precise fitting and robust support. These supports are RoHS compliant, ASTM D 4066 and PA111 certified, and meet stringent UL File No. E41938 standards. Operating within a temperature range of -40 to 185F, these supports guarantee reliable performance in diverse environments.
Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Board Thickness
.062 (1.57) inches (mm)
Specifications Dim L
.875 (22.3) inches (mm)
Specifications Material Code
UL94V-2
Specifications Remarks Board Thickness
Board Thickness is for both ends.
