12 Series Nylon Keyslot Circuit Board Supports (UL94V-2)

Name: 12 Series Nylon Keyslot Circuit Board Supports (UL94V-2)
Brand: All Electronics Hardware
SKU: 01C-0bece7
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-0bece7

Enhance your circuit board setup with our durable Nylon 66 Keyslot Supports. Easy to install and remove for repairs, RoHS compliant with -40 to 185F temp range.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

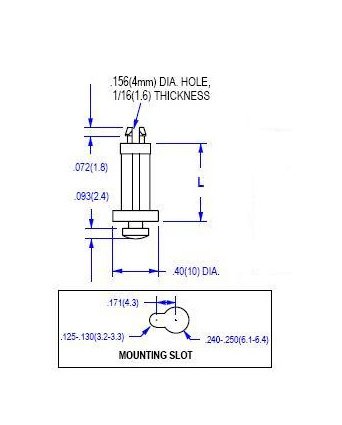

Experience hassle-free installation and repair with our 12 Series Nylon Keyslot Circuit Board Supports. These supports feature a .156-inch hole, suitable for boards with a thickness of .062 inches. Crafted from Nylon 66 UL94V-2 material, these supports are durable and RoHS compliant, ensuring safety and quality. With a temperature range of -40 to 185F, they provide reliable performance in various environments. Add the 'X' at the end of the part number for UL94V-0 material. Upgrade to efficiency and reliability with these circuit board supports.

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Board Thickness

.062 (1.57) inches (mm)

Specifications Dim L

.187 (4.8) inches (mm)

Specifications Material Code

UL94V-2

Specifications Remarks Board Thickness

Board Thickness is for both ends.
