12 Series Nylon Keyslot Circuit Board Supports with .156" Hole
12 Series Nylon Keyslot Circuit Board Supports with .156" Hole
SKU:01C-67a921
Durable 12 Series Nylon Keyslot Circuit Board Supports for reliable installation and repairs. RoHS compliant and temperature-resistant. Buy now!
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
12 Series Nylon Keyslot Circuit Board Supports with .156" Hole
$29.99
Quantity: 1
Claim Your Seller Account
12 Series Nylon Keyslot Circuit Board Supports with .156" Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your circuit board support system with the 12 Series Nylon Keyslot Supports. Designed for easy installation and removal, these durable supports are crafted from Nylon 66 UL94V-2 material (UL94V-0 available). With ASTM D 4066 and PA111 compliance, these supports offer a board hole diameter of .156 inches, suitable for boards with a thickness of .062 inches on both ends. RoHS compliant, with a temperature range of -40 to 185F (-40 to 85C), these supports ensure reliability and safety in various applications.

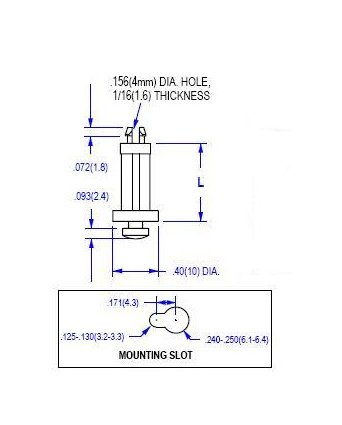

Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Board Thickness
.062 (1.57) inches (mm)
Specifications Dim L
1.00 (25.4) inches (mm)
Specifications Material Code
UL94V-2
Specifications Remarks Board Thickness
Board Thickness is for both ends.
