12" Strap Hinge - Steel, Zinc-plated, 8 Ga.
12" Strap Hinge - Steel, Zinc-plated, 8 Ga.
SKU:HIN-a06aa2
Heavy-duty 12" Strap Hinge, Steel, Zinc-plated finish. Ideal for narrow bracket side & rear doors.
Regular price
$19.50
Regular price
Sale price
$19.50
Unit price
per
Initiate Order
12" Strap Hinge - Steel, Zinc-plated, 8 Ga.
$19.50
Quantity: 1
Claim Your Seller Account
12" Strap Hinge - Steel, Zinc-plated, 8 Ga.
$19.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

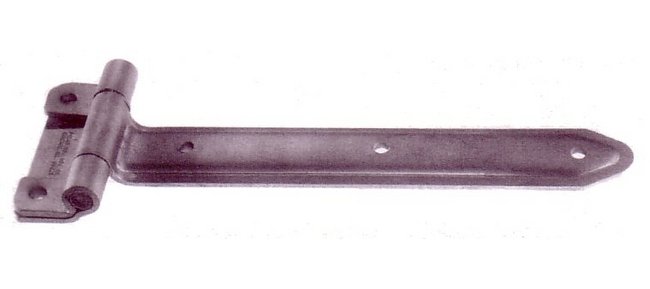

The 12" Strap Hinge is a heavy-duty solution designed for narrow bracket side and rear door applications. Constructed from 8 Ga. steel with a zinc-plated finish, this hinge offers exceptional durability and corrosion resistance. The hinge features a 1/2" Dia. steel pin, 4 7/16" mounting holes on the strap, and a weight of 2 1/4 lb. Its precise dimensions ensure a secure and stable installation. Suitable for both consumer and institutional needs, this high-quality hinge provides reliability and strength for various door configurations.
Product Specifications
Specifications Bracket

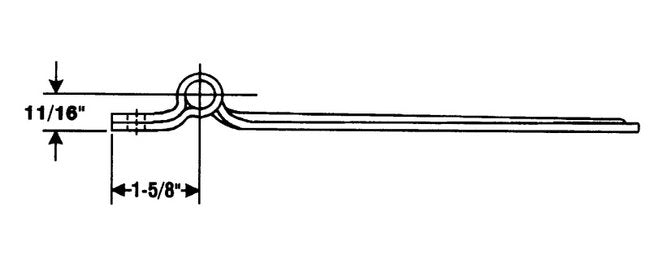

8 Ga. x 4 1/2" x 1 5/8" from center of pin.
Specifications Finish
Steel - Zinc plated
Specifications List Price
19.50 USD

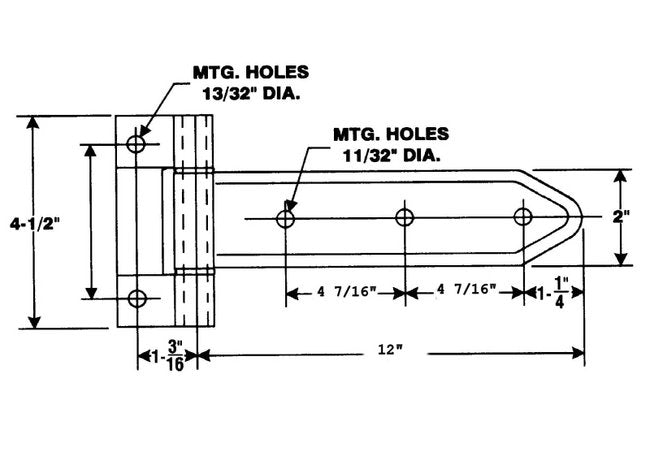

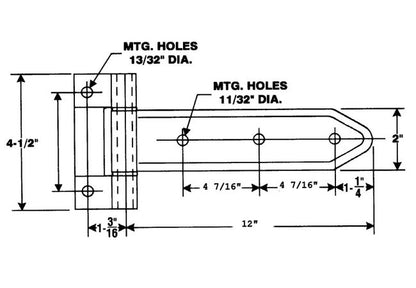

Specifications Mounting Holes On Strap C To C
4 7/16"
Specifications Pin
1/2" Dia. Steel
Specifications Strap
8 Ga. x 2" x 12"
Specifications Weight
2 1/4 lb
