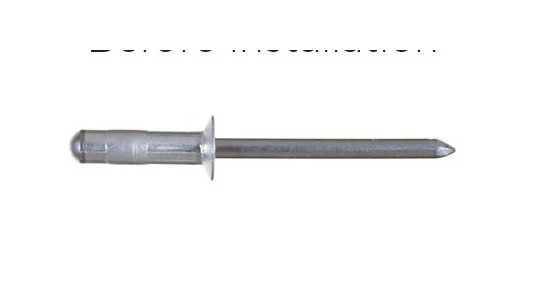

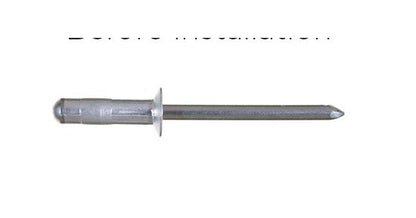

120 Degree Countersunk Head Rivet - Aluminum/Stainless Steel

Name: 120 Degree Countersunk Head Rivet - Aluminum/Stainless Steel
Brand: Ornit USA
SKU: UFI-0569f5
Price: 45.99 USD
Availability: OutOfStock

SKU:UFI-0569f5

Enhance fastening with this durable 120 Degree Countersunk Head Rivet for reliable industrial, construction, and automotive applications.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your fastening solutions with the U-Fix Aluminum/Stainless Steel 120 Degree Countersunk Head Rivet. Boasting a 3.2mm diameter and 12.7mm body length, this rivet offers exceptional strength and durability. Crafted from Aluminum Alloy ALmg 2.5 with a Stainless Steel AISI 430/434 mandrel, it ensures reliable performance in various applications. With a nominal shear force of 70kgf and a nominal tensile force of 93kgf, this rivet guarantees secure fastening. Ideal for industrial, construction, and automotive purposes, meet your project's demands with this precision-engineered rivet.

Product Specifications

Nominal Dimensions Body Length

12.7 mm | 0.500 in

Nominal Dimensions Diameter

3.2 mm | 1/8 in

Nominal Dimensions Drillhole Size

3.3 mm | 0.130 in

Nominal Dimensions Head Diameter

5.35 mm | 0.211 in

Nominal Dimensions Head Thickness

0.85 mm | 0.33 in

Nominal Dimensions Mandrel Diameter

1.81 mm | 0.071 in

Nominal Dimensions Maximum Grip Range

9.5 mm | 0.374 in

Nominal Dimensions Minimum Grip Range

4.0 mm | 0.157 in

Nominal Forces Nominal Shear Force

70 kgf | 154 lbf

Nominal Forces Nominal Tensile Force

93 kgf | 204.6 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy ALmg 2.5

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

7000

Technical Specs Head Style

120 Degree Countersunk

Technical Specs Mandrel Finish

Natural

Technical Specs Mandrel Material

Stainless Steel AISI 430/434 or Equivalent
