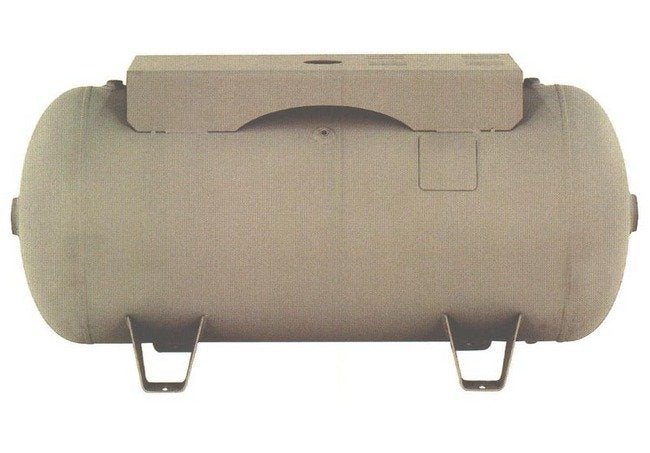

120-Gallon Horizontal Air Receiver Tank with Legs & Top Plate

Name: 120-Gallon Horizontal Air Receiver Tank with Legs & Top Plate
Brand: Compressed Air Systems, Inc.
SKU: REC-c18860
Price: 899.99 USD
Availability: OutOfStock

SKU:REC-c18860

Efficiently store compressed air with our 120-Gallon Horizontal Air Receiver Tank, featuring a 200 psi MWP, legs, and top plate.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 120-Gallon Horizontal Air Receiver Tank with a maximum working pressure of 200 psi is designed to efficiently store compressed air for various industrial applications. With a nominal capacity of 120 gallons, this tank features sturdy legs and a top plate for stability and ease of installation. The tank's precise dimensions of 24.00" (L) x 16.50" (W) x 34.00" (H) ensure a compact fit in diverse spaces. Built to meet rigorous industry standards, this air receiver guarantees reliability and performance in demanding environments.

Product Specifications

Financing Approve Payments

Finance with Approve Payments

Specifications Cross Reference

A10034

Specifications Dimension A

9.50 inches

Specifications Dimension B

24.00 inches

Specifications Dimension C

16.50 inches

Specifications Dimension D

34.00 inches

Specifications Dimension E

20.63 inches

Specifications Dimension F

2.25 inches

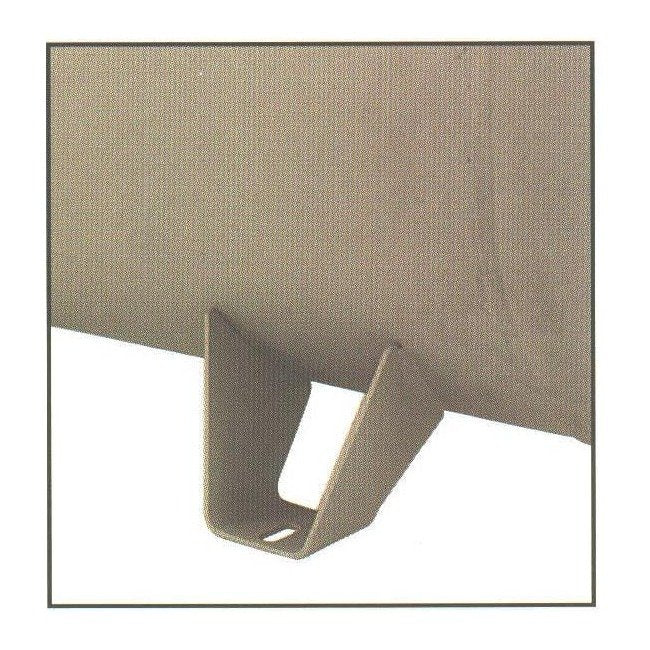

Specifications Feet

Wing Feet

Specifications Ht

27.94 inches

Specifications Mawp

200 psi

Specifications Nominal Capacity

120 gal | 16.04 ftÂ³

Specifications Npt Opening G

2 inches

Specifications Npt Opening H

1 1/2 inches

Specifications Npt Opening J

3/4 inches

Specifications Od

24.00 inches

Specifications Size

11/16 x 1 3/4 inches

Specifications Tl

67.00 inches

Specifications Top Plate

0.25 x 16 x 44

Specifications Tw

382

120-Gallon Horizontal Air Receiver Tank with Legs & Top Plate
