120-Gallon Vacuum Receiver with 150-psi MAWP
120-Gallon Vacuum Receiver with 150-psi MAWP
SKU:REC-1b2856
120-Gallon Vacuum Receiver with 150-psi MAWP - Reliable and efficient solution for industrial vacuum applications.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
120-Gallon Vacuum Receiver with 150-psi MAWP
$1,499.99
Quantity: 1
Claim Your Seller Account
120-Gallon Vacuum Receiver with 150-psi MAWP
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

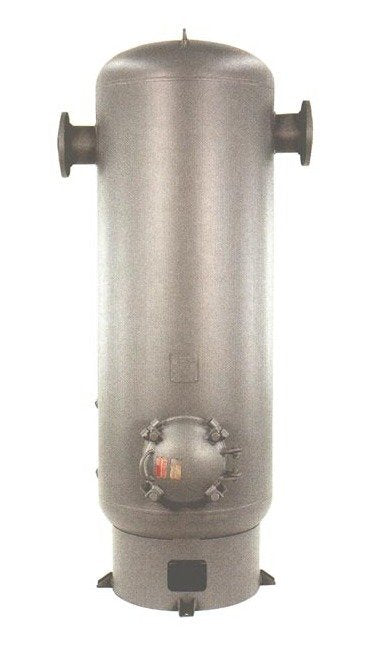

The 120-gallon Vacuum Receiver with a maximum allowable working pressure (MAWP) of 150 psi is a robust and efficient solution for industrial vacuum applications. With a nominal capacity of 120 gallons (16.04 ft³) and sturdy construction, this receiver tank is designed for reliable performance. Its dimensions (24.00'' O.D. x 75.00'' HT) and N.P.T. openings meet industry standards, ensuring compatibility with a variety of systems. Suitable for handling vacuum ratings up to 29.9 inHg, this receiver tank is a versatile choice for both consumer and institutional buyers seeking durability and functionality.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Cross Reference
V10097

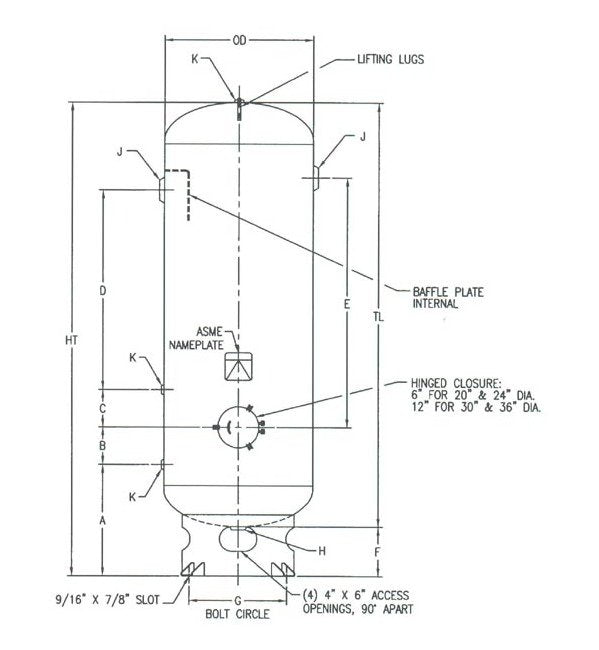

Specifications Dimension A
18.00 inches
Specifications Dimension B
6.00 inches
Specifications Dimension C
6.00 inches
Specifications Dimension D
31.00 inches
Specifications Dimension E
39.00 inches
Specifications Dimension F
8.00 inches
Specifications Dimension G
21.00 inches
Specifications Ht
75.00 inches
Specifications Mawp
150 psi
Specifications Nominal Capacity
120 gal | 16.04 ft³
Specifications Npt Opening H
2 inches
Specifications Npt Opening J
3
Specifications Npt Opening K
1/2 inches
Specifications Od
24.00 inches
Specifications Tl
67.00 inches
Specifications Tw
385
Specifications Vacuum Rating
29.9 inHg
