120 Gallons Horizontal Air Receiver - ASME Certified
120 Gallons Horizontal Air Receiver - ASME Certified
SKU:HOR-c67614
ASME-certified 120 Gal Horizontal Air Receiver - Ideal for high-pressure industrial applications
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
120 Gallons Horizontal Air Receiver - ASME Certified
$899.99
Quantity: 1
Claim Your Seller Account
120 Gallons Horizontal Air Receiver - ASME Certified
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

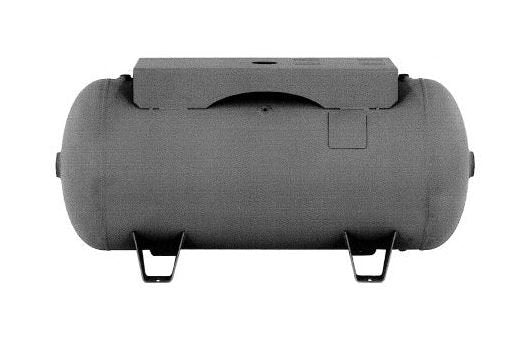

The 120 Gallons Capacity 24 Inch Diameter Horizontal Air Receiver is meticulously crafted to meet ASME standards, ensuring top-notch quality and reliability. With a design pressure of 200 psi and a standard design temperature of 450 ºF, this air receiver is ideal for industrial applications requiring high-pressure storage. The tank features NPT threaded openings, a grey oxide primer finish, and is available for high pressures up to 600 psi, catering to a wide range of operational needs. Designed with precision and durability in mind, this horizontal air receiver guarantees optimal performance and longevity.

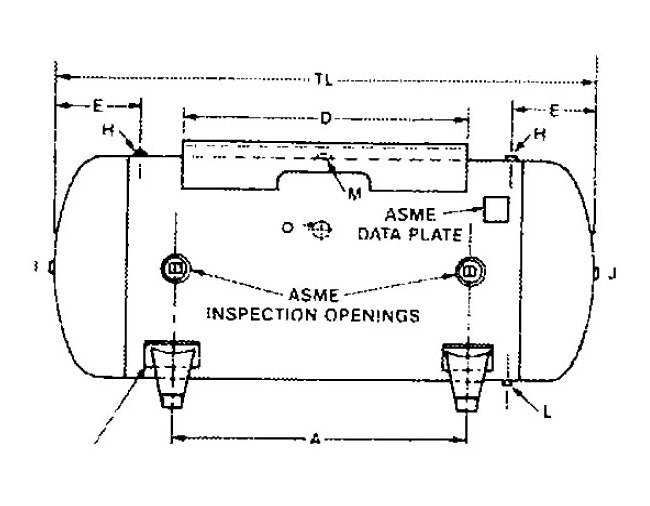

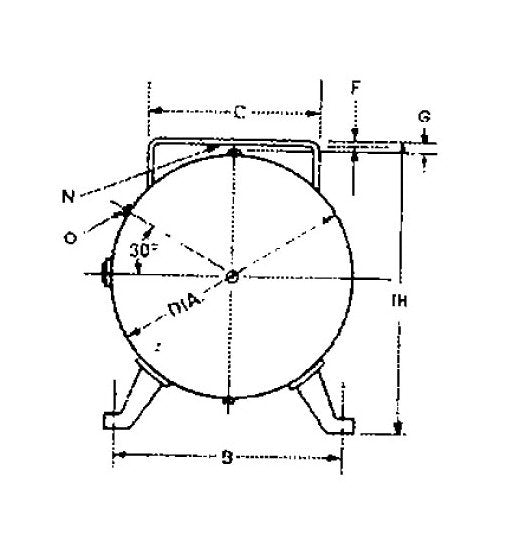

Product Specifications
Dimensions Dimension A
9.5 in
Dimensions Dimension B
24 in
Dimensions Dimension C
16.5 in
Dimensions Dimension D
34 in
Dimensions Dimension E
20.63 in
Dimensions Dimension F
2.25 in
Dimensions Dimension G
2 in
Note 0
Pads are not used on 16" diameter tanks.
Openings Opening H
154 in
Openings Opening I
3/4 in
Openings Opening J
1-1/2 in
Openings Opening K
2 in
Openings Opening L
3/4 in
Openings Opening M
1-1/2 in
Openings Opening N
3 in
Openings Opening O
1/4 in
Specifications Design Pressure
200 psi
Specifications Diameter
24 in
Specifications Height
26.25 in
Specifications Industry Standards
ASME
Specifications Length
69 in
Specifications Standard Design Temperature
450 ºF
Specifications Volume
120 gal
