120 Inch (in) Casing Side Advanced Acoustical Cone for Greenheck Vane Axial Fan

Name: 120 Inch (in) Casing Side Advanced Acoustical Cone for Greenheck Vane Axial Fan
Brand: ArtUSA Noise Control Products
SKU: SIL-b75beb
Price: 49.99 USD
Availability: OutOfStock

SKU:SIL-b75beb

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

Dynamic Insertion Loss Dynamic Insertion Loss 1000 Hertz Hz 1500

28 dB

Dynamic Insertion Loss Dynamic Insertion Loss 125 Hertz Hz 1500

14 dB

Dynamic Insertion Loss Dynamic Insertion Loss 2000 Hertz Hz 1500

22 dB

Dynamic Insertion Loss Dynamic Insertion Loss 250 Hertz Hz 1500

19 dB

Dynamic Insertion Loss Dynamic Insertion Loss 4000 Hertz Hz 1500

20 dB

Dynamic Insertion Loss Dynamic Insertion Loss 500 Hertz Hz 1500

28 dB

Dynamic Insertion Loss Dynamic Insertion Loss 63 Hertz Hz 1500 F

7 dB

Dynamic Insertion Loss Dynamic Insertion Loss 8000 Hertz Hz 1500

14 dB

Note

For each 1500 FPM over 1500, add 1 dB per band.

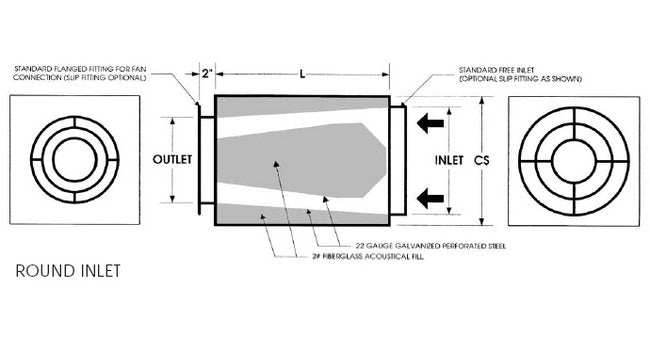

Specifications Casing Side

120 in

Specifications Inlet Diameter

113 in

Specifications Length

109 in

Specifications Maximum Air Flow

89000 ft³/min

Specifications Outlet Diameter

55.000 in

Specifications Shape Of Inletoutlet

Round Inlet

Specifications Silencer Size Class

Specifications Type

Acoustical

Specifications Use For

Greenheck Vane Axial Fans

120 Inch (in) Casing Side Advanced Acoustical Cone for Greenheck Vane Axial Fan
