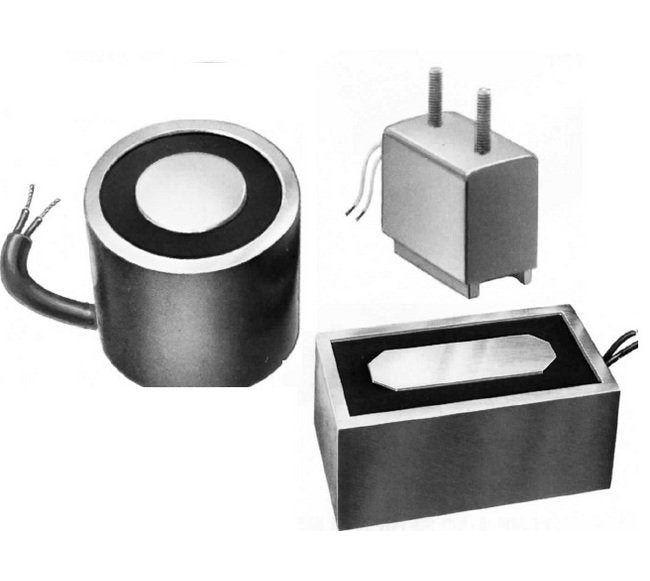

120 VAC Round Electromagnet with Internal Rectifier
120 VAC Round Electromagnet with Internal Rectifier
SKU:120-ca6198
Versatile 120V AC electromagnet with 16 lb pull capacity, internal rectifier, and easy installation for diverse applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
120 VAC Round Electromagnet with Internal Rectifier
$59.99
Quantity: 1
Claim Your Seller Account
120 VAC Round Electromagnet with Internal Rectifier
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 120 VAC Round Electromagnet with built-in rectifier offers a convenient solution for various applications. This electromagnet boasts a pull capacity of 16 lbs on clean, flat, low carbon steel at magnetic saturation. With a 1-inch diameter and 1 1/4-inch height, it operates at 120V AC input voltage, internally rectified to 110V DC output voltage. The 6-ft cord with a molded 3-prong plug simplifies installation. While not suitable for electronic release functions, it provides reliable magnetic performance for manual or automated operations.
Product Specifications
Additional Information 0
It should be noted that the majority of installations use DC magnets with rectifier-controllers. The rectifier- controller provides the means for quick and clean release. The 120 VAC Electromagnets, due to the internal rectifier, cannot facilitate an electronic release function. An AC Electromagnet that is holding a part in direct contact and is de-energized without a release pulse can have up to 20 % residual magnetism. A 500 lb. capacity AC Electromagnet may not release a 100 lb. part cleanly, or at all, without a mechanical assist.
Manufacturing Notes 0
All units are 120 VAC and are provided with a 6 feet Cord with molded 3-prong plug switching can be accomplished by: relay contact, S.P.S.T. Switch, or 120 VAC PLC signal.
Specifications Ac Input Voltage
120 V
Specifications Cord Length
6 ft
Specifications Current
.05 A
Specifications Dc Output Voltage
110 V
Specifications Diameter
1 in
Specifications Height
1 1/4 in
Specifications Magnet Shape
Round
Specifications Pull Capacity
16 lb
