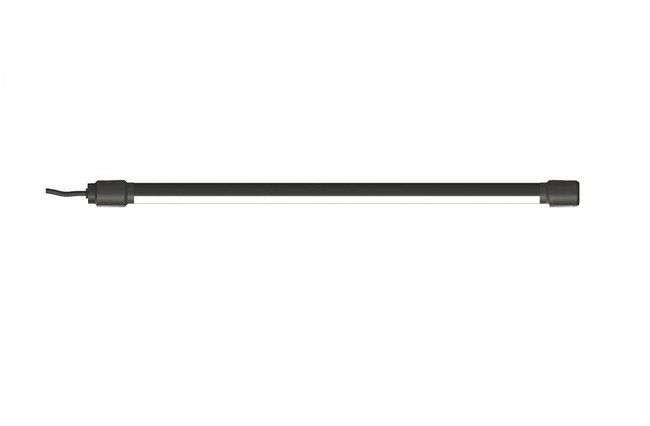

120 Volt (V) Alternating Current (AC) Voltage Low-Profile Driverless Vaporsealed Light Emitting Diode (LED) Linear Luminaire Light
120 Volt (V) Alternating Current (AC) Voltage Low-Profile Driverless Vaporsealed Light Emitting Diode (LED) Linear Luminaire Light
SKU:LOW-126aa1
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
120 Volt (V) Alternating Current (AC) Voltage Low-Profile Driverless Vaporsealed Light Emitting Diode (LED) Linear Luminaire Light
$49.99
Quantity: 1
Claim Your Seller Account
120 Volt (V) Alternating Current (AC) Voltage Low-Profile Driverless Vaporsealed Light Emitting Diode (LED) Linear Luminaire Light
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
IP66/67 Low-Profile, Vaporsealed Industrial LED Linear.
Product Specifications
Construction And Materials

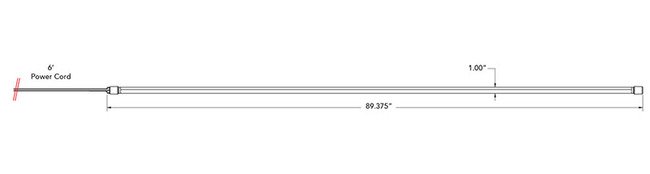

Built-in 6' SJEOW Power. CordIntegrated aluminum heat spreader.Seamless polymeric outer shell provides IP68 ingress protection and is specialized for superior chemical resistance. An additional protective coating is available which integrates a UV inhibitor and UV blocker for outdoor applications.All G&G luminaires and components (with the exception of our LED boards and drivers) are proudly manufactured and assembled in the USA.
Lumen And Power Data Current At 120 Volt V Voltage
0.70 A
Lumen And Power Data Current At 277 Volt V Voltage
0.30 A
Lumen And Power Data Lumens
10,000 lm
Lumen And Power Data Wattage
84 W
Alternating Current Ac Input Voltage
120 V
Ambient Temperature
-40 to 60 ºC
Efficacy
120 lm/W
Ingress Protection Ip Class
IP65 | IP66 | IP67
Lens
Copolyester, Diffused to Limit Glare & Evenly Spread Light Output
Lifetime
Designed to last 100,000 Hours at 25 ºC
Mounted Height
1.75 in
Mounted Length
Varies
Mounted Width
1.25 in
Mounting
Ceiling | Wall
Surge Protection
Built-in 6 kV Surge Protection
Color Rendering Index Cri
85
Warranty
5 y

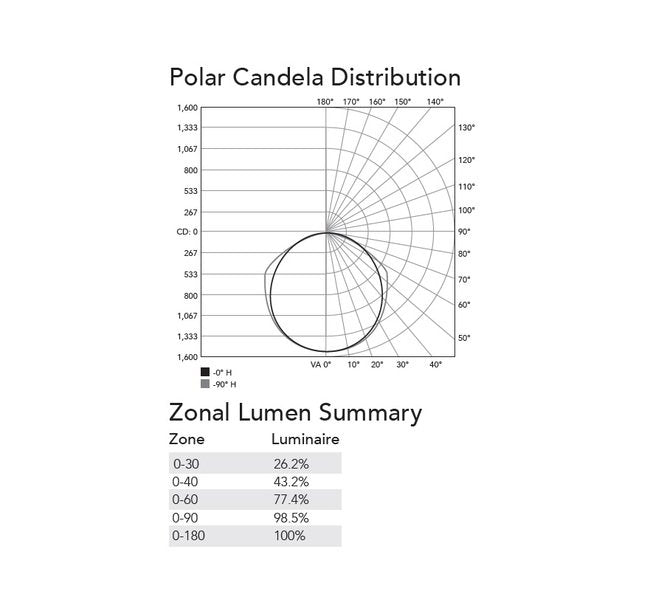

Photometry
Based on DTC Report Test #: 14404-TFixture photometry has been conducted by a NVLAP accredited testing laboratory in accordance with IESNA LM-79-08. IESNA LM-79-08 specifies the entire luminaire as the source resulting in a fixture efficiency of 100%.
Product Features

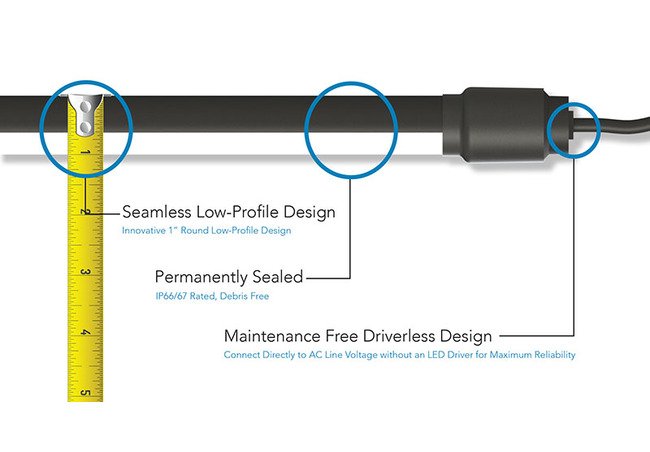

Compact Low-Profile Design - 1'' round patented linear housing provides a remarkably slim low profile allowing installation in almost any application. The design is lightweight, incredibly easy to mount and creates a modern, sleek result.Maintenance-Free Driverless Design - Connects directly to AC line voltage without an LED driver or electrolytic capacitors, for extreme reliability and lifetime. Requires zero maintenance.Superior Waterproof Chemical & UV Resistance - Seamless polymeric outer shell provides maximum ingress protection and is specialized for superior chemical resistance. An additional protective coating is available which integrates a UV inhibitor and UV blocker for outdoor applications.Coextruded Copolyester/Aluminum Housing - Our patented process combines copolyester and aluminum together, with no seals or gaskets. The result is a single piece enclosure with excellent heat sinking characteristics for long lifetime.Seamless Low-Profile Design - Innovative 1" Round Low-Profile DesignPermanently Sealed - IP66/67 Rated, Debris Free.Maintenance Free Driverless Design - Connect Directly to AC Line Voltage without an LED Driver for Maximum Reliability.
Specifications Application

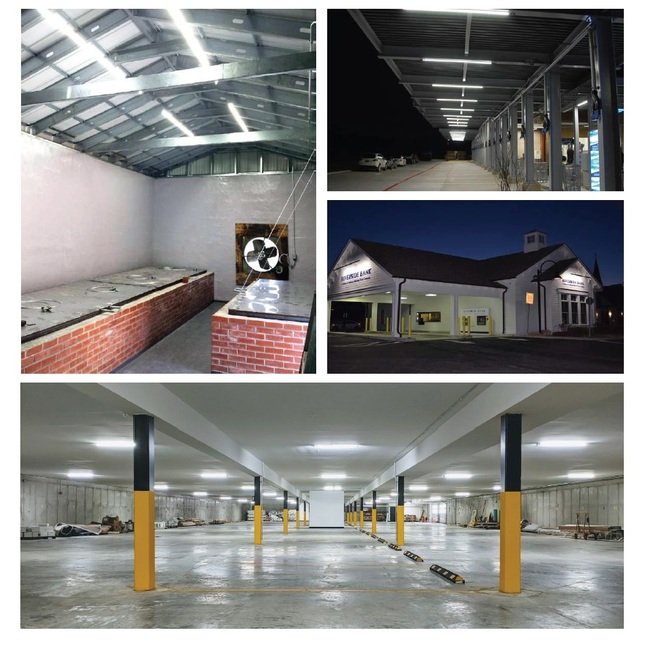

Agriculture | Cold Storage | Exterior Canopies | Food Processing | Industrial Facilities | Manufacturing | Marine | Parking Garages | Signage
Specifications Length
8 ft
Specifications Regulatory Qualification
cULus Listed | NEMA 4X Rated | NSF Certified | UL Listed for Wet Locations
Specifications Standard Color Temperature
5000 K
Specifications Ultraviolet Uv Protection
Outdoor-Rated with Ultraviolet (UV)-Blocking Coating
