The 125 PSI Cast Iron Ball Valve Class 125 is a high-quality two-piece valve designed for demanding industrial applications. Featuring a blowout-proof stem and full port design, this valve ensures reliable performance under high pressure and temperature conditions. With a cast iron body, stainless steel trim, PTFE seats and seals, and flat face flanged ends, it meets stringent industry standards such as MSS SP-72, ASME B16.1, and ASME B16.10. Ideal for applications requiring Class 125 WSP/200 WOG valves with superior durability and performance.
Product Specifications

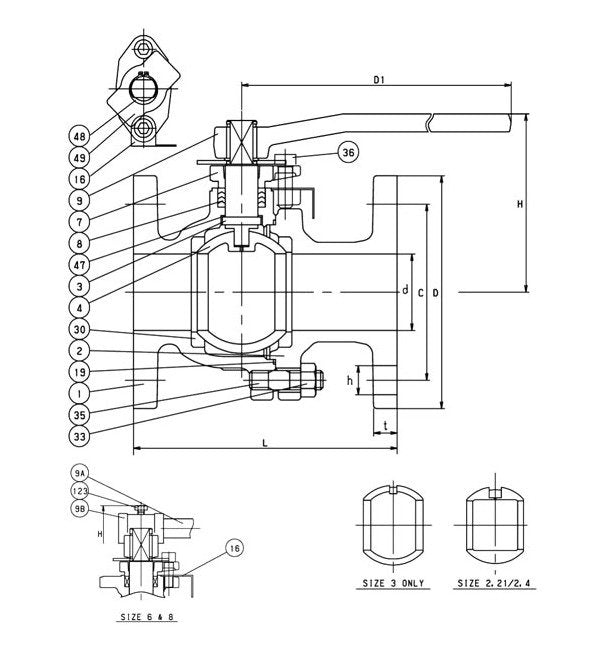

Material List 0
No. Name of Part Specification 1 Body Cast Iron (A126 Cl. B) 2 Body Caps Cast Iron (A126 Cl. B) 3 Stem Stainless Steel (A276 Type 304) 4 Ball Stainless Steel (A276, Type 304 or A351 Gr. CF8) 7 Gland Ductile Iron 8 Gland Packing (1 Set) Ptfe 9 Handle Ductile Iron 9A Handle Bar Carbon Steel (6"-10") 9B Handle Head Ductile Iron (6"-10") 16A Name Plate Aluminum 16B Washer Carbon Steel 19 Gasket PTFE 30 Ball Seats PTFE 33 Cap Nut (1 Set) Carbon Steel 35 Cap Bolt (1 Set) Carbon Steel 36 Gland Bolt (1 Set) Carbon Steel 47 Thrust Washer G/F + PTFE 48 Snap Ring Carbon Steel 49 Stopper Stainless Steel 123 Handle Bolt Carbon Steel (6"-10")
Specifications Approx Net Wt
37.00
Specifications Bolt No
4
Specifications Bolt Size
5/8 inches
Specifications Carton Qty
1
Specifications Class
FCTB
Specifications Dimension D
2.56
Specifications Dimension D1
15.75
Specifications Dimension D2
2 1/2 inches
Specifications Dimension H
6.02
Specifications Dimension L
7.48
Specifications End Size
Flat Face Flanged
Specifications Material
Cast Iron
Specifications Port
Full
Specifications Pressuretemperature
125 PSI - Saturated Steam to 353°F | 200 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have Class 125 WSP/200 WOG cast iron body, CF8 stainless steel trim, blowout proof stem, PTFE seats and seals with flat face flanged ends and conforming to MSS SP-72, ASME B16.1, ASME B16.10.KITZ Code # 90 (125FCTB) Full PortKITZ Code # 91 (125FCTR) Standard Port
Standard 0
End to End ASME B16.10 Class 125/150 End Connection ASME B16.1 Class 125 Wall Thickness KITZ Conforms to MSS SP72
