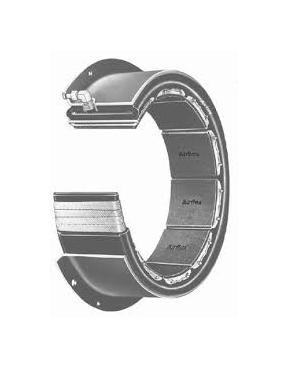

12CB350 Single Flange CB Element
12CB350 Single Flange CB Element
SKU:CLU-e5dc99
High-performance 12CB350 Single Flange CB Element for industrial applications, with a torque rating of 13000 lb·in, and maximum speed of 1800 rpm.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
12CB350 Single Flange CB Element
$899.99
Quantity: 1
Claim Your Seller Account
12CB350 Single Flange CB Element
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12CB350 Single Flange CB Element offers a robust torque rating of 13000 lb·in, making it ideal for heavy-duty industrial applications. With a maximum speed of 1800 rpm, this element ensures efficient performance. Weighing 30 lb and featuring precise dimensions, it guarantees reliable operation. The friction area, new and worn friction lining thickness, and other key specifications meet stringent procurement standards, ensuring durability and compliance in demanding environments.

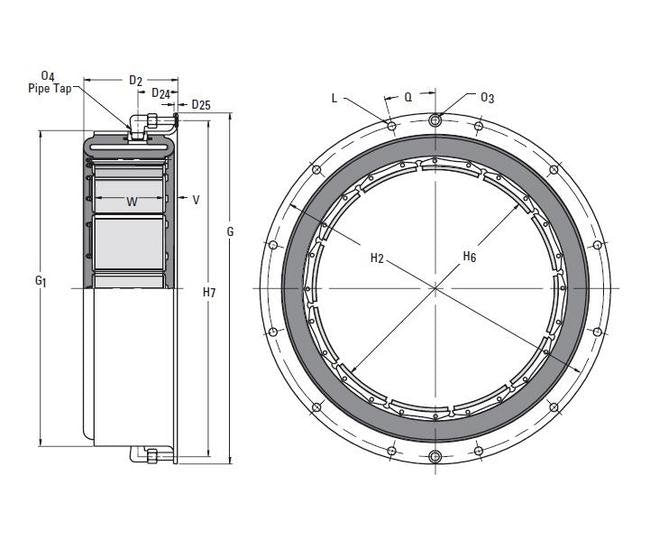

Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified. For example 142098JA, 142098JB, 142098JC, 142098JG
Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
80 in³ | 1.31 dm³
Specifications Angle Q
12.857 º
Specifications Bolt Hole Size L
0.375 in | 10 mm
Specifications Centrifugal Loss Constant Cs
0.83 E-06 bar/rpm2 | 12 E-06 psi/rpm2
Specifications Dimension D2
4.88 in | 124 mm
Specifications Dimension D24
2.00 in | 51 mm
Specifications Dimension D25
0.19 in | 5 mm
Specifications Dimension G
17.625 in | 447.7 mm
Specifications Dimension G1
15.88 in | 403 mm
Specifications Dimension H2
16.875 in | 428.6 mm
Specifications Dimension H6
12.13 in | 308 mm
Specifications Dimension H7
16.88 in | 429 mm
Specifications Dimension O3
0.31 in | 8 mm
Specifications Dimension V
0.69 in | 17 mm
Specifications Friction Area
128 in² | 826 cm²
Specifications Friction Shoe Width W
3.50 in | 89 mm
Specifications Inertia
12 lb·ft² | 0.5 kg·m²
Specifications Manufacturer
Airflex
Specifications Maximum Speed
1800 rpm
Specifications Minimum Drum Diameter
11.90 in | 302 mm
Specifications New Friction Lining Thickness
0.20 in | 5 mm
Specifications Number Of Friction Shoes
12
Specifications Number Of Mounting Holes
14
Specifications Size
12CB350
Specifications Torque Rating 75 Psi55 Bar
13000 lb·in | 1470 Nm
Specifications Weight
30 lb | 14 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
