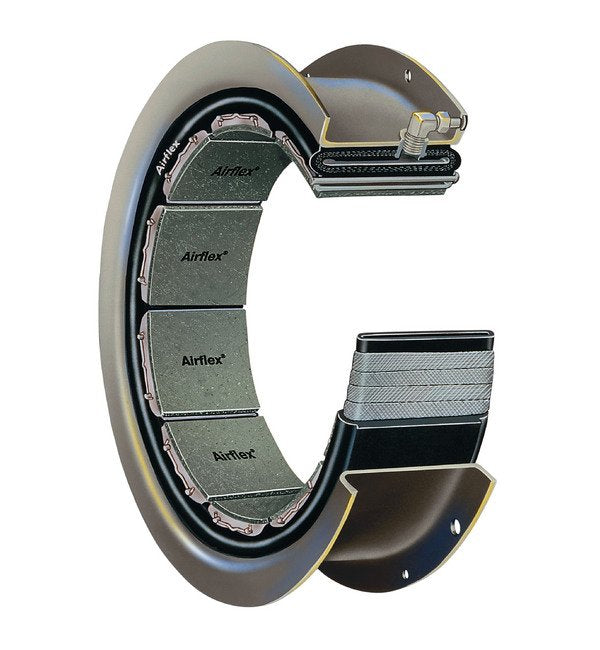

12CB350 Single Flange CB Elements
12CB350 Single Flange CB Elements
SKU:CLU-eeaa06
High-performance 12CB350 Single Flange CB ElementForm CB-401 for precise industrial applications. Torque: 13300 lb·in, Speed: 1800 rpm, Durable & Reliable.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
12CB350 Single Flange CB Elements
$899.99
Quantity: 1
Claim Your Seller Account
12CB350 Single Flange CB Elements
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12CB350 Single Flange CB ElementForm CB-401 is a high-performance component designed for industrial applications requiring precision and reliability. With a Torque Rating of 13300 lb·in | 1500 Nm and a Maximum Speed of 1800 rpm, this element ensures efficient power transmission. Its durable construction, including a Friction Area of 128 in² | 825.6 cm² and Inertia of 11.0 lb·ft² | 0.46 kg·m², guarantees longevity and consistent performance. Meeting industry standards for quality and durability, this element is a cost-effective solution for demanding clutch and brake systems.
Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
80 in³ | 1.31 dm³
Specifications Angle Q
12.857 º
Specifications Bolt Hole Size L
0.38 in | 10 mm
Specifications Centrifugal Loss Constant Cs
0.83 E-06 bar/rpm2 | 12.0 E-06 psi/rpm2
Specifications Dimension D2
4.72 in | 120 mm
Specifications Dimension D24
2.00 in | 51 mm
Specifications Dimension D25
0.19 in | 5 mm
Specifications Dimension G
17.625 in | 447.7 mm
Specifications Dimension G1
15.88 in | 403 mm
Specifications Dimension H2
16.875 in | 428.6 mm
Specifications Dimension H6
12.13 in | 308 mm
Specifications Dimension H7
16.88 in | 429 mm
Specifications Dimension O3
0.31 in | 8 mm
Specifications Dimension V
0.69 in | 17 mm
Specifications Friction Area
128 in² | 825.6 cm²
Specifications Friction Shoe Width W
3.50 in | 89 mm
Specifications Inertia
11.0 lb·ft² | 0.46 kg·m²
Specifications Manufacturer
Airflex
Specifications Maximum Speed
1800 rpm
Specifications Minimum Drum Diameter
11.90 in | 302 mm
Specifications New Friction Lining Thickness
0.20 in | 5 mm
Specifications Number Of Friction Shoes
12
Specifications Number Of Mounting Holes
14
Specifications Size
12CB350
Specifications Torque Rating 75 Psi55 Bar
13300 lb·in | 1500 Nm
Specifications Weight
26 lb | 12 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
