12kVDC Front Panel Single Pin Receptacle (Threaded)
12kVDC Front Panel Single Pin Receptacle (Threaded)
SKU:HIG-c8fac3
High-voltage single pin receptacle rated at 12kVDC and 70,000 ft altitude. Threaded coupling, ideal for lasers and power supplies.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
12kVDC Front Panel Single Pin Receptacle (Threaded)
$39.99
Quantity: 1
Claim Your Seller Account
12kVDC Front Panel Single Pin Receptacle (Threaded)
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12kVDC Front Panel Single Pin Receptacle from the PeeWee Series offers high-voltage connectivity in a subminiature design, ideal for dense electronic packaging. Featuring Teledyne Reynold's Advanced Interface™ sealing technology, this connector operates efficiently at 12 kVDC and 70,000 feet altitude with a wide temperature range of -55°C to 125°C. With a threaded coupling style and silicone rubber interface seal, this receptacle ensures secure and reliable high-voltage connections for applications like lasers, power supplies, photomultipliers, and TWT.
Product Specifications
Application 0
LasersPower SuppliesPhotomultipliersTWT
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Design
Spherical Radius, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plated
Contact Properties Contact Size
24 AWG
Contact Properties Contact Type
Male
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle
Specifications Coupling Style
Threaded
Specifications Current Rating
1.6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Interface Seal
Silicone Rubber
Specifications Mating Compatibility
Mates with threaded plug cable assemblies.
Specifications Operating Temperature
-55 to 125 ºC

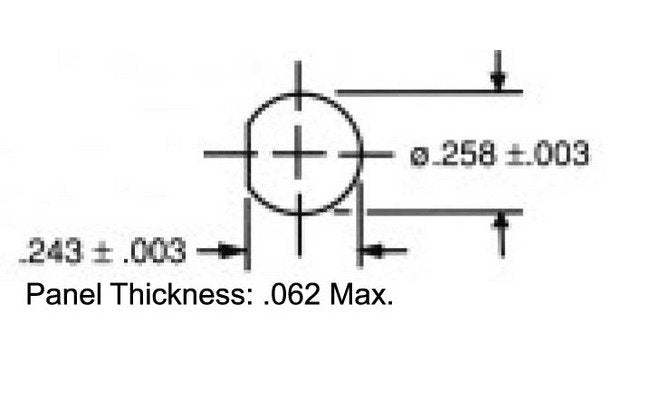

Specifications Panel Mounting Style
Front Mount
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
PeeWee
Specifications Soldering Bucket
Accommodates 22 AWG max.
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
