12kVDC PeeWee Series Right Angle Plug Cable Assembly
12kVDC PeeWee Series Right Angle Plug Cable Assembly
SKU:HIG-d2daa9
High-voltage connector with patented sealing, designed for dense electronic packaging at 12kVDC
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
12kVDC PeeWee Series Right Angle Plug Cable Assembly
$69.99
Quantity: 1
Claim Your Seller Account
12kVDC PeeWee Series Right Angle Plug Cable Assembly
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

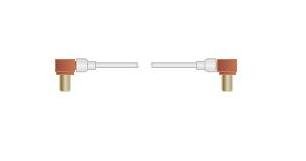

The 12kVDC PeeWee Series Plug Cable Assembly is designed for high voltage applications requiring compact connectivity solutions. Featuring Teledyne Reynold's patented Advanced Interface™ for sealing high voltage at reduced atmospheric pressure, this double-ended right angle plug assembly is rated at 12kVDC at 70,000 feet altitude. With a current rating of 1.6 Amp and an operating temperature range of -55 to 125 °C, this connector ensures reliability in demanding environments. Mating compatibility with all non-threaded PeeWee series receptacles and receptacle cable assemblies makes it versatile for various applications.
Product Specifications
Application 0
LasersPower SuppliesTWTPhotomultipliers
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.050 in
Contact Properties Contact Design
Split Finger, Closed Entry, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plate with CRES Hood
Contact Properties Contact Size
24 AWG
Contact Properties Contact Type
Female
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Right Angle Plug Cable Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all non-threaded Pee-Wee series receptacles and receptacles cable assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Etched FEP NOMEX®
Specifications Wire Pn
178-8111
