12kVDC PeeWee Series Right Angle Receptacle Cable Assembly
12kVDC PeeWee Series Right Angle Receptacle Cable Assembly
SKU:HIG-817f6c
12kVDC PeeWee Series Right Angle Receptacle Cable Assembly for high voltage applications, rated at 12 kVDC up to 70,000ft.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
12kVDC PeeWee Series Right Angle Receptacle Cable Assembly
$59.99
Quantity: 1
Claim Your Seller Account
12kVDC PeeWee Series Right Angle Receptacle Cable Assembly
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12kVDC PeeWee Series Right Angle Receptacle Cable Assembly is a subminiature high-voltage connector designed for dense electronic packaging in high voltage applications. Utilizing Teledyne Reynold's patented Advanced Interface™ method, this connector is rated at 12 kVDC at altitudes up to 70,000 feet with a wide temperature range of -55°C to 125°C. Featuring a Push-Pull Coupling style and Single-Ended assembly type, it mates with all non-threaded PeeWee series plug assemblies. With an operating temperature range, encapsulation with silicone rubber, and spherical radius contact design, this connector ensures reliable high voltage sealing and transmission.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Design
Spherical Radius, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plated
Contact Properties Contact Size
24 AWG
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type

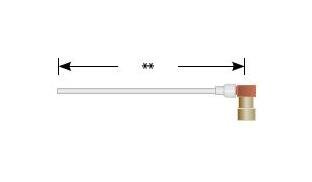

Single-Ended Right Angle Receptacle Cable Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Interface Seal
Silicone Rubber
Specifications Mating Compatibility
Mates with all non-threaded PeeWee series plug assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Etched FEP
Specifications Wire Pn
178-8111
