12kVDC PeeWee Series Single Pin Connector Cable Assembly with NOMEX
12kVDC PeeWee Series Single Pin Connector Cable Assembly with NOMEX
SKU:HIG-7593b8
High-voltage PeeWee Series Plug Cable Assembly with NOMEX insulation, rated for 12kVDC, ideal for dense electronic packaging.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
12kVDC PeeWee Series Single Pin Connector Cable Assembly with NOMEX
$89.99
Quantity: 1
Claim Your Seller Account
12kVDC PeeWee Series Single Pin Connector Cable Assembly with NOMEX
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

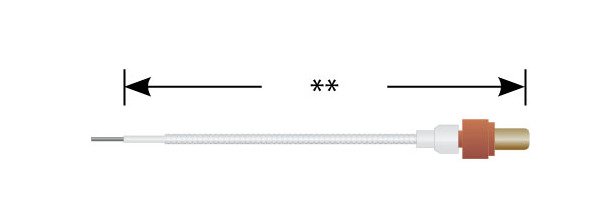

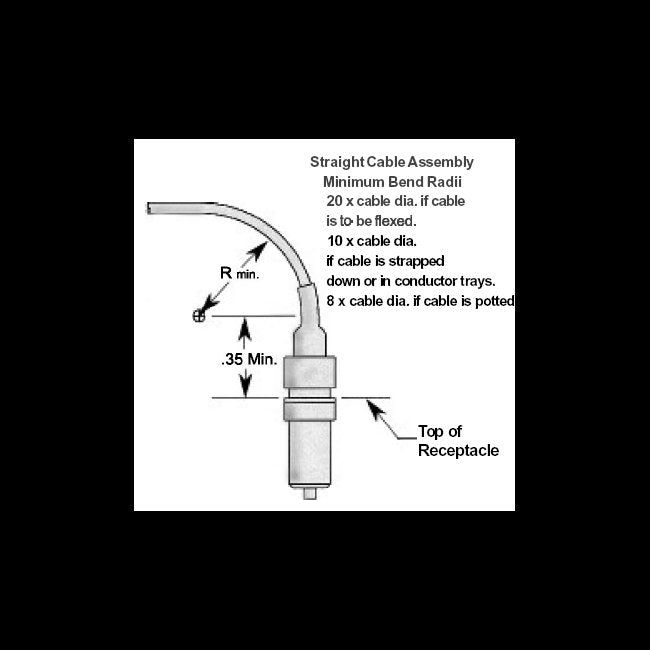

The 12kVDC PeeWee Series Plug Cable Assembly with Push-Pull Coupling is ideal for high-voltage applications requiring compact design. Utilizing Teledyne Reynold's Advanced Interface™ technology, it seals high voltage under reduced atmospheric pressure, ensuring reliability at 70,000 feet. With a temperature range of -55°C to 125°C, this connector boasts a 12 kVDC rating and meets institutional procurement standards for demanding environments. The assembly features a straight plug configuration with NOMEX insulation, ensuring safety and performance in critical applications.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.050 in
Contact Properties Contact Design
Split Finger, Closed Entry, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plate with CRES Hood
Contact Properties Contact Size
24 AWG
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended W/ NOMEX® Straight Plug Cable Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all non-threaded PeeWee series plug assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Etched FEP with NOMEX®
Specifications Wire Pn
178-8118
