12kVDC PeeWee Series Threaded Coupling Cable Assembly
12kVDC PeeWee Series Threaded Coupling Cable Assembly
SKU:HIG-d044bd
Enhance your high voltage applications with the 12kVDC PeeWee Receptacle Cable Assembly featuring a threaded coupling design and advanced sealing system.
Regular price
$64.99
Regular price
Sale price
$64.99
Unit price
per
Initiate Order
12kVDC PeeWee Series Threaded Coupling Cable Assembly
$64.99
Quantity: 1
Claim Your Seller Account
12kVDC PeeWee Series Threaded Coupling Cable Assembly
$64.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

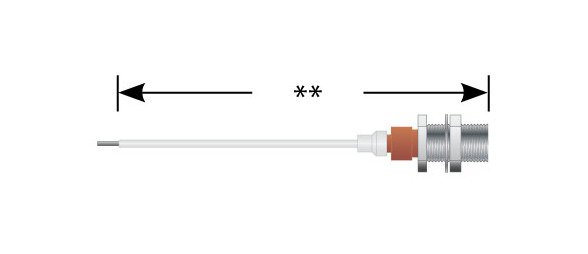

The 12kVDC PeeWee Series Receptacle Cable Assembly offers unparalleled performance in high voltage applications with its Advanced interface sealing system, allowing operation at 70,000 feet and -55 to +125°C. This single-ended straight assembly is designed for dense electronic packaging, featuring a threaded coupling style that ensures secure connections. With a current rating of 1.6 Amp and a test voltage of 18 kVDC, this assembly is ideal for TWT applications, lasers, power supplies, and photomultipliers. The BeCu, gold-plated contact material guarantees reliability and durability, meeting the highest industry standards for quality and performance.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Design
Spherical Radius, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plated
Contact Properties Contact Size
24 AWG
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Straight Receptacle Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Interface Seal
Silicone Rubber
Specifications Mating Compatibility
Mates with threaded plug assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Etched FEP
Specifications Wire Pn
178-8111
