12kVDC Right Angle Plug Cable Assembly - PeeWee Series
12kVDC Right Angle Plug Cable Assembly - PeeWee Series
SKU:HIG-e2f9be
Premium 12kVDC Right Angle Plug Cable Assembly for high voltage applications. Patented seal for extreme conditions.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
12kVDC Right Angle Plug Cable Assembly - PeeWee Series
$89.99
Quantity: 1
Claim Your Seller Account
12kVDC Right Angle Plug Cable Assembly - PeeWee Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

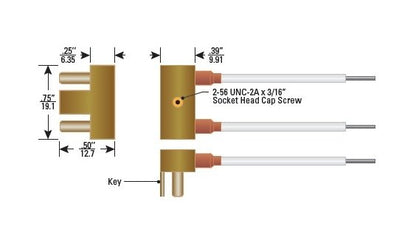

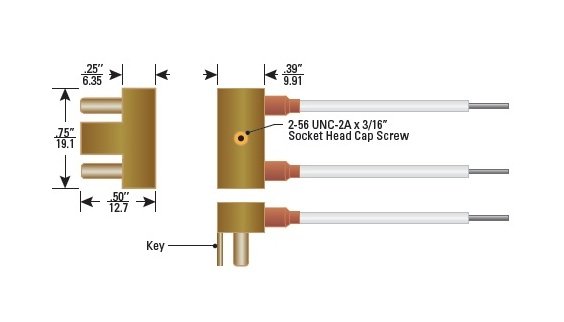

The 12kVDC Right Angle Plug Cable Assembly from the PeeWee Series is an exceptional solution for high voltage applications requiring compact connectivity. Featuring Teledyne Reynold's Advanced Interface™ sealing method, this connector boasts a 12 kVDC rating at 70,000 ft altitude with a wide temperature range of -55°C to 125°C. With precise engineering and quality materials like silicone-coated FEP wire insulation and BeCu contacts with gold finish, this assembly ensures reliable performance in demanding environments.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Contact Properties Contact Design
Split Finger, Closed Entry, Molded in Place
Contact Properties Contact Diameter
0.030
Contact Properties Contact Finish
Gold with CRES Hood
Contact Properties Contact Material
BeCu
Contact Properties Contact Size
22 AWG
Contact Properties Contact Type
Female
Coupling Nut Properties Coupling Nut Finish
Nickel Plated
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Braid Termination
Band
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Threaded or Jack Screw
Specifications Current Rating
5 A
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Insulator Material
Plastic
Specifications Interface Seal
Silicone Rubber
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Mating Compatibility
Mates with Pee-Wee series two pin receptacle cable assemblies.
Specifications Number Of Contacts
2
Specifications Operating Temperature
-55 to 125 ºC
Specifications Sealed Receptacle
No
Specifications Series
PeeWee
Specifications Soldering Bucket
Accommodates 22 AWG max.
Specifications Standardnon Standard
Nonstandard Part
Specifications Test Voltage At 70000 Ft
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Diameter
0.060 in
Specifications Wire Insulation
Silicone Coated FEP with NOMEX® Jacket
Wire Specifications Conductor Awg
24
Wire Specifications Conductor Plating
SPC
Wire Specifications Conductor Strands
19/36
Wire Specifications Insulation Material
Silicone Coated FEP
Wire Specifications Insulator Diameter
0.060 in | 1.52 mm
Wire Specifications Operating Voltage
18 kVDC
