12mm Male Pipe Weld Elbow - SMPWEI Series
12mm Male Pipe Weld Elbow - SMPWEI Series
SKU:SMP-3c30f7
Efficiently connect metric tubes to pipes with our 12mm Male Pipe Weld Elbow. Industry-leading design for precise compression and safety.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
12mm Male Pipe Weld Elbow - SMPWEI Series
$49.99
Quantity: 1
Claim Your Seller Account
12mm Male Pipe Weld Elbow - SMPWEI Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

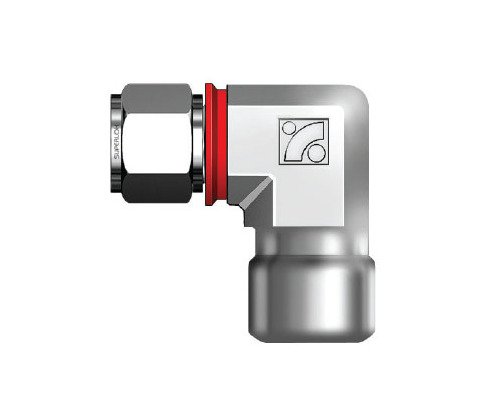

The SMPWEI Series 12mm Male Pipe Weld Elbow is designed to seamlessly connect metric tubes to pipes with precision and reliability. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, it offers superior durability and corrosion resistance. Featuring i-Fitting® components for optimal compression, safety, and productivity, this male pipe weld elbow is ideal for high-pressure and chemical environments. With dimensions ranging from 6mm to 25mm, it meets stringent industry standards and ensures efficient valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

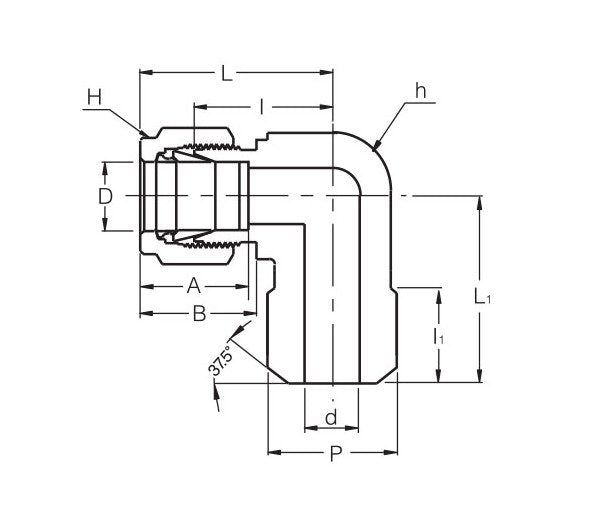

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
21.8 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension I1
19.1 mm
Technical Specs Dimension L
36.1 mm
Technical Specs Dimension L2
33.0 mm
Technical Specs Male Pipe Outside Diameter
21.30 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.5 mm
Technical Specs Nominal Male Pipe Size P
1/2 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22.2 mm
