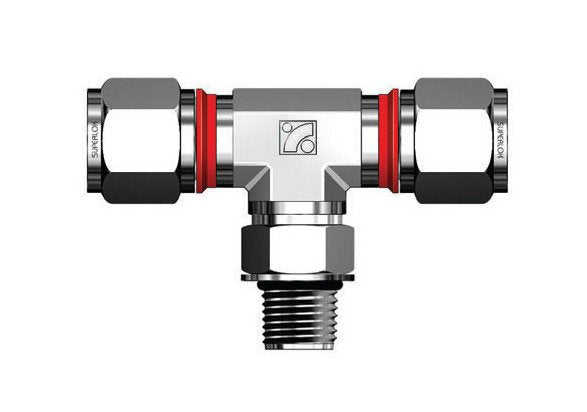

12mm Positionable Male Branch Tee Fitting
12mm Positionable Male Branch Tee Fitting
SKU:SPM-a3369f
High-performance 12mm Positionable Male Branch Tee Fitting with i-Fitting® technology for secure metric tube connections.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
12mm Positionable Male Branch Tee Fitting
$34.99
Quantity: 1
Claim Your Seller Account
12mm Positionable Male Branch Tee Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPMBTI Series 12mm Positionable Male Branch Tee Fitting is a precision-engineered component that connects metric tubes to female ISO parallel threads seamlessly. Crafted from a range of high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting is designed to meet the most stringent industry standards. Featuring the innovative i-Fitting® technology, it ensures optimal compression, enhances safety in high-pressure environments, and improves installation efficiency. With dimensions that offer versatility in various applications, this fitting is a reliable choice for both consumer and institutional buyers.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

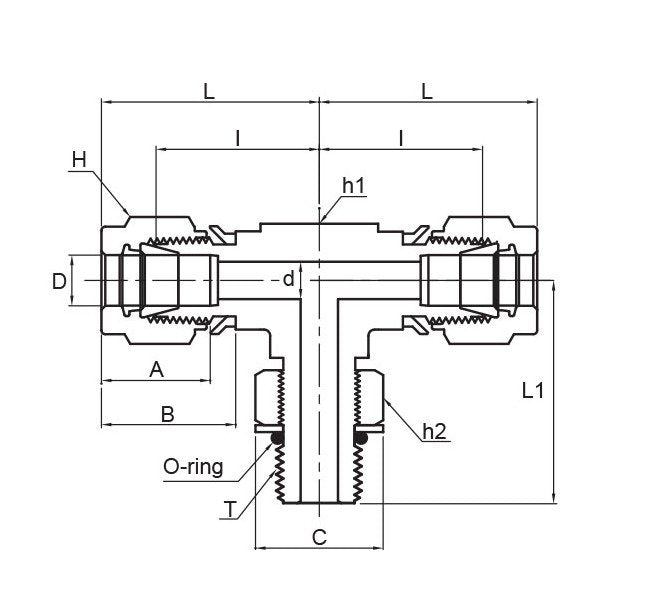

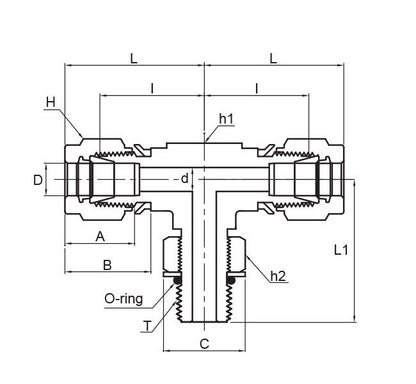

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension C
32.0 mm
Technical Specs Dimension I
27.9 mm
Technical Specs Dimension L
38.0 mm
Technical Specs Dimension L1
35.0 mm
Technical Specs Dimension T Pf
1/2 in
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22 mm
Technical Specs Width Across Flat H1
23.8 mm
Technical Specs Width Across Flat H2
27 mm
