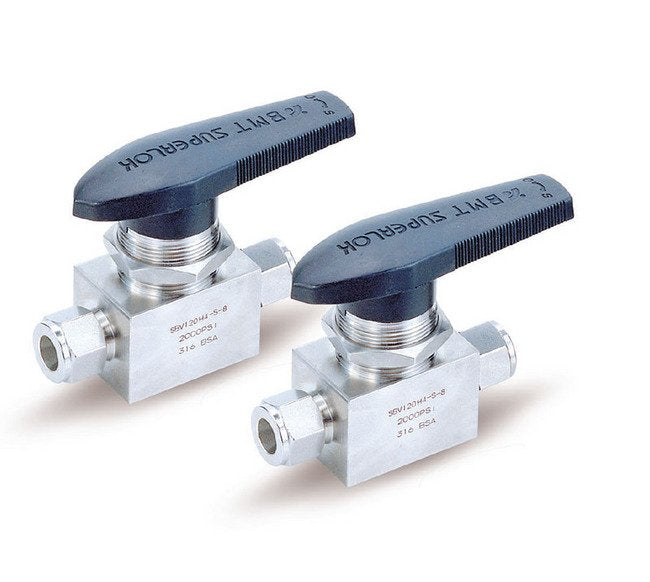

12mm SBV120H Series SUPERLOK One-Piece Ball Valve
12mm SBV120H Series SUPERLOK One-Piece Ball Valve
SKU:SBV-0c2dd7
Premium 12mm SUPERLOK Ball Valve, durable stainless steel construction, ideal for diverse applications
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
12mm SBV120H Series SUPERLOK One-Piece Ball Valve
$129.99
Quantity: 1
Claim Your Seller Account
12mm SBV120H Series SUPERLOK One-Piece Ball Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12mm SBV120H Series SUPERLOK One-Piece Ball Valve is a high-quality valve designed for optimal performance in various industrial applications. With a pressure rating of 2500 psig and precise orifice size of 10.3 mm, this valve ensures efficient flow control and reliability. Its stainless steel body, tested to stringent standards, offers durability and safety. Featuring a simple one-piece design, easy operation, and versatile end connections, this valve is a trusted choice for both consumer and institutional buyers.
Product Specifications
Features Features
Simple design with one piece bodyTight and smooth, low torque and easy operationOne-piece ball stemPanel mountableVariety of End ConnectionsStraight, Angle and 3-Way flow patternsEach and every valve is tested at the factory
Note Note

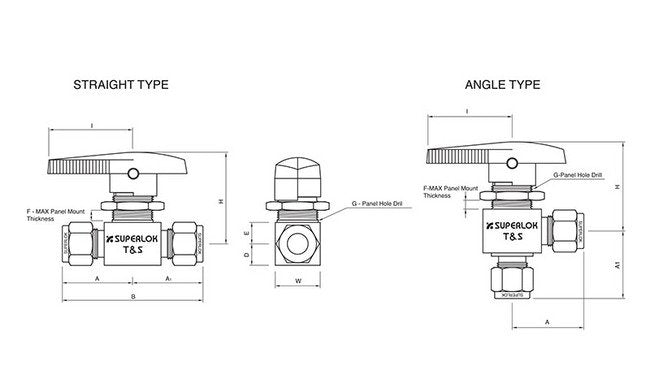

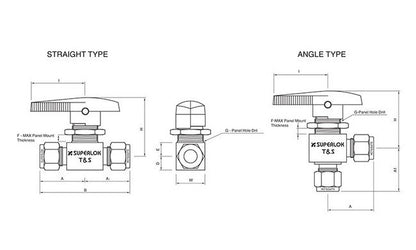

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Packing Adjustment Packing Adjustment
Valves are adjusted for factory testing at 1000 psig (69 bar).Packing must be readjusted for service at higher pressures.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
50.0 mm
Technical Specs Dimension A1
50.0 mm
Technical Specs Dimension B
100 mm
Technical Specs Dimension D
17.5 mm
Technical Specs Dimension E
17.5 mm
Technical Specs Dimension F
9.4 mm
Technical Specs Dimension G
38.1 mm
Technical Specs Dimension H
71.8 mm
Technical Specs Dimension I
75.0 mm
Technical Specs Dimension W
39.0 mm
Technical Specs Flow Coefficients Cv
12
Technical Specs Inlet End Connections
12 mm Superlok®
Technical Specs Orifice Size
10.3 mm
Technical Specs Outlet End Connections
12 mm Superlok®
Technical Specs Pattern
Angle Type 2-Way On-Off Valve | Straight Type 2-Way On-Off Valve
Technical Specs Pressure Rating
2500 psig | 172 bar
Technical Specs Temperature Rating With Polytetrafluoroethylene
50 to 150 ºF | 10 to 65 ºC
Testing Testing
Each Valve is tested with nitrogen at 1000 psig (69 bar) to maximum allowable leak rate of 0.1 SCCM.
