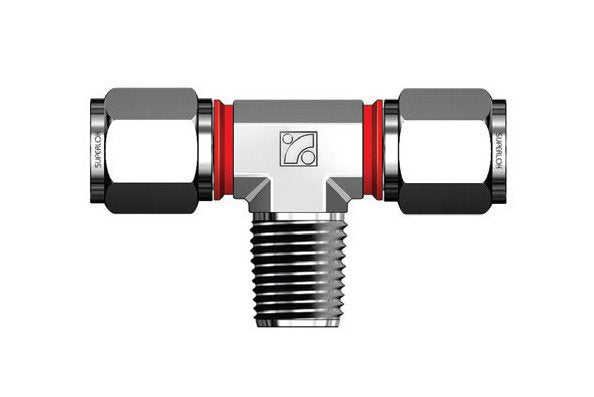

12mm SMBTI Series Male Branch Tee Fitting with 1/2" Thread
12mm SMBTI Series Male Branch Tee Fitting with 1/2" Thread
SKU:SMB-d27ee9
Securely connect metric tubes to female ISO tapered threads with this high-quality male branch tee fitting.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
12mm SMBTI Series Male Branch Tee Fitting with 1/2" Thread
$24.99
Quantity: 1
Claim Your Seller Account
12mm SMBTI Series Male Branch Tee Fitting with 1/2" Thread
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12mm SMBTI Series Male Branch Tee Fitting with 1/2" Thread is a high-quality fitting designed to connect metric tubes to female ISO tapered threads. Made from top-grade materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures a secure and leak-free connection. Featuring innovative i-Fitting® components like a built-in gap gauge for perfect compression, it enhances installer safety in high-pressure environments, improves productivity, and reduces costs. With dimensions crafted for precision and durability, this fitting is ideal for connecting valves in various industries.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

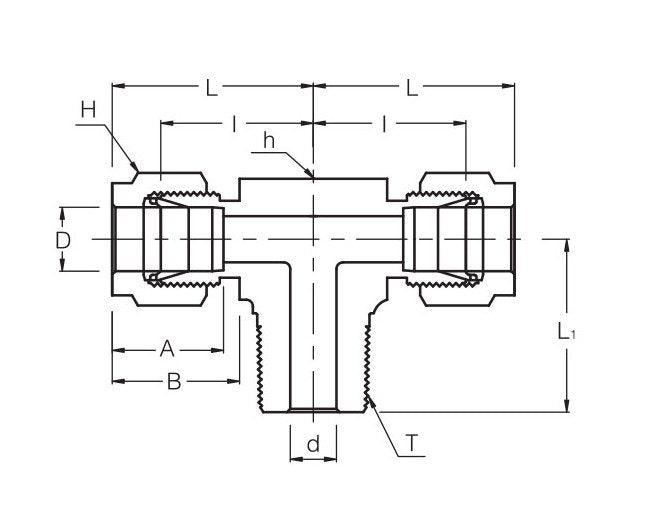

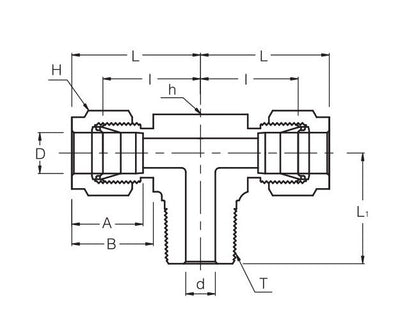

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
36.0 mm
Technical Specs Dimension L1
33.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/2 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22 mm
