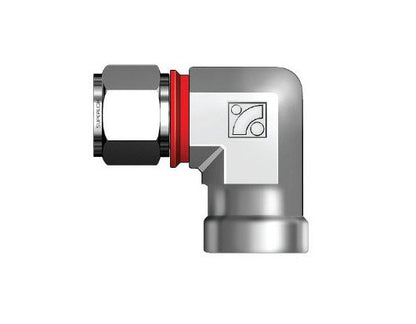

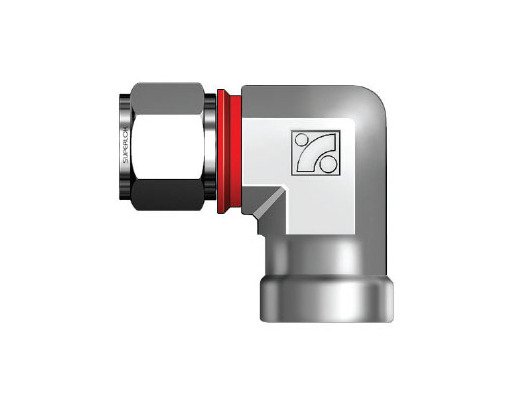

12mm Tube Female Elbow Connector - 3/8in Pipe Thread

Name: 12mm Tube Female Elbow Connector - 3/8in Pipe Thread
Brand: Superlok-Mako Products LLC
SKU: SFE-4c46fb
Price: 29.99 USD
Availability: OutOfStock

SKU:SFE-4c46fb

Effortlessly connect metric tubes to male ISO tapered threads with this 12mm Tube Female Elbow Connector. Enhanced safety and productivity with patented design.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SFEI Series 12mm Tube Female Elbow Connector with 3/8in Pipe Thread is engineered to effortlessly connect metric tubes to male ISO tapered threads. Made from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this female elbow ensures reliability, safety, and precise compression. Featuring patented i-Fitting® components like a built-in gap gauge and check ring, it enhances installer safety and productivity in high-pressure environments. With dimensions designed for optimal performance and industry-leading design, this connector is a game-changer in valve connections.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

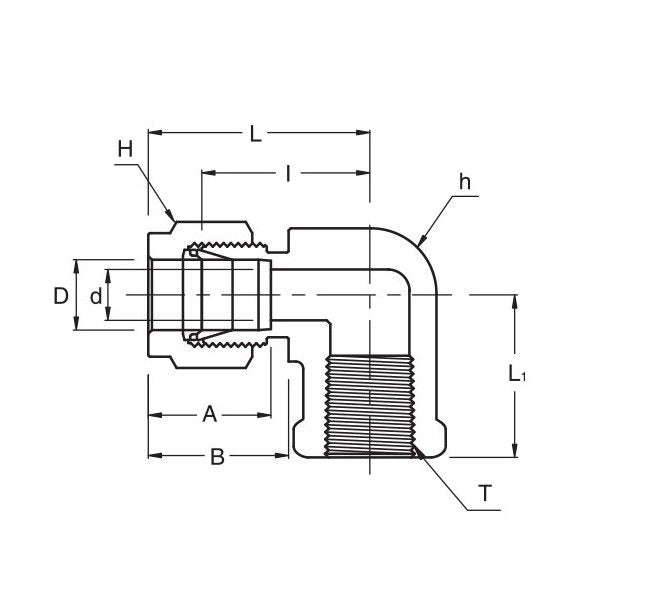

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Connection Type

Female

Technical Specs Dimension A

22.8 mm

Technical Specs Dimension B

22.0 mm

Technical Specs Dimension I

25.9 mm

Technical Specs Dimension L

36.2 mm

Technical Specs Dimension L1

22.35 mm

Technical Specs Material

Technical Specs Minimum Dimension D

9.5 mm

Technical Specs Standard Size

6 to 25 mm

Technical Specs Thread Size T

3/8 in

Technical Specs Thread Type

Pipe Thread (PT)

Technical Specs Tube Outside Diameter D

12 mm

Technical Specs Width Across Flat H

22 mm
