12mm Tube Female Run Tee Fitting with 3/8in Thread - SFRTI Series
12mm Tube Female Run Tee Fitting with 3/8in Thread - SFRTI Series
SKU:SFR-4697f2
Connect metric tubes to male ISO tapered threads with precision and safety using the SFRTI Series Female Run Tee Fitting.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
12mm Tube Female Run Tee Fitting with 3/8in Thread - SFRTI Series
$29.99
Quantity: 1
Claim Your Seller Account
12mm Tube Female Run Tee Fitting with 3/8in Thread - SFRTI Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

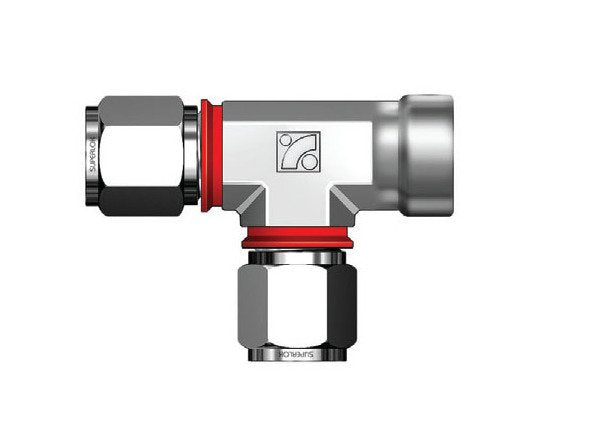

The SFRTI Series 12mm Tube Female Run Tee Fitting with 3/8in Thread is designed to seamlessly connect metric tubes to male ISO tapered threads. Crafted from a range of durable materials including stainless steel and aluminum, this fitting incorporates unique i-Fitting® components for enhanced safety, precision, and productivity. Its patented design features a built-in gap gauge to prevent over- and under-tightening, making it ideal for high-pressure and hazardous chemical environments. With dimensions engineered for reliability and performance, this fitting offers industry-leading quality and assurance.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

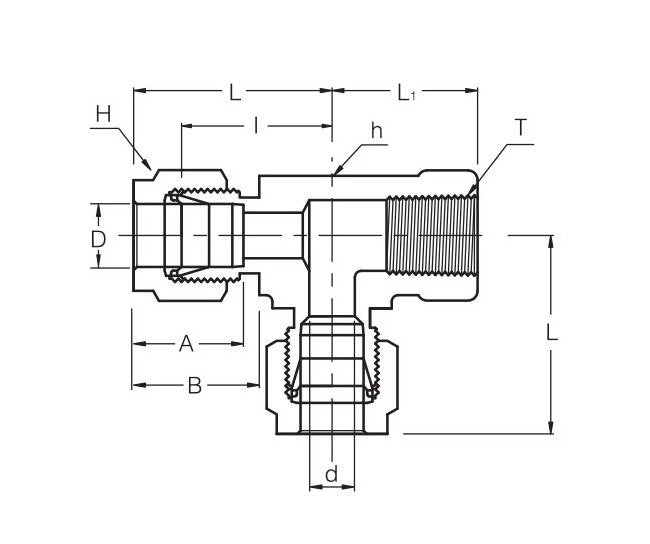

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
36.0 mm
Technical Specs Dimension L1
22.40 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
3/8 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22 mm
