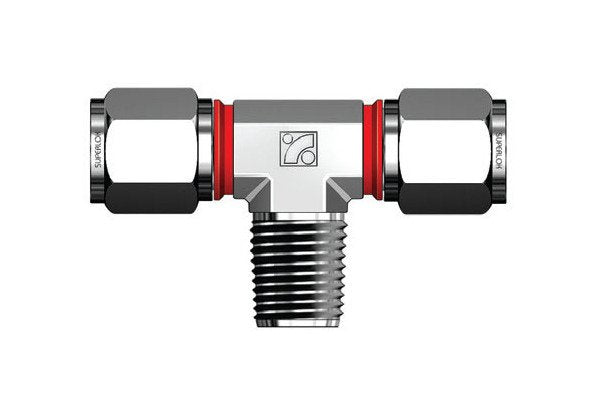

12mm Tube OD Male Branch Tee Fitting with 1/4in Thread Size
12mm Tube OD Male Branch Tee Fitting with 1/4in Thread Size
SKU:SMB-0102c0
Enhance connectivity with our premium 12mm Tube OD Male Branch Tee Fitting. Patented design for safety & productivity.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The SMBTI Series 12mm Tube OD Male Branch Tee Fitting with 1/4in Thread Size seamlessly connects metric tubes to female ISO tapered threads. Made from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting is engineered for durability and reliability. Its patented i-Fitting® design ensures perfect compression, enhances installer safety in high-pressure environments, and improves overall productivity. Ideal for valve connections, this fitting is versatile and compliant with industry standards for seamless integration in various applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

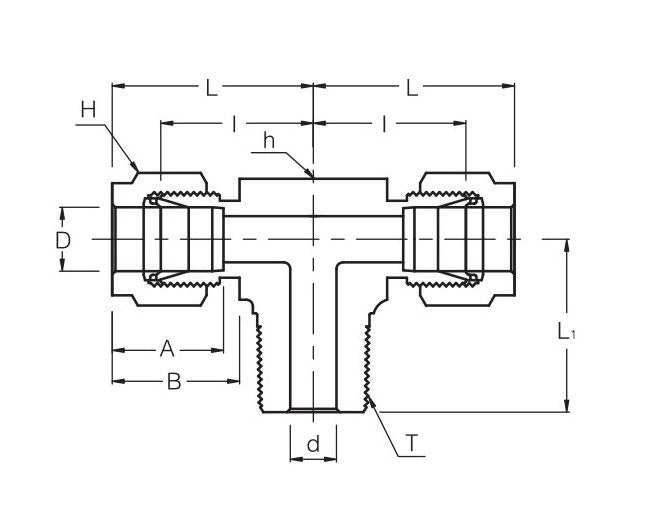

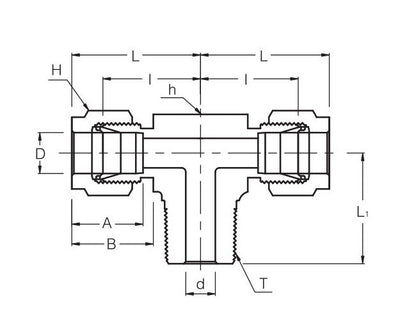

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
36.0 mm
Technical Specs Dimension L1
28.2 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.1 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/4 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22 mm
