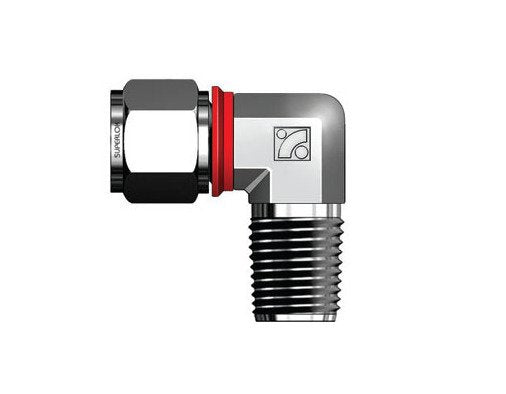

12mm Tube Outside Diameter Male Elbow with 1/2" Thread Size
12mm Tube Outside Diameter Male Elbow with 1/2" Thread Size
SKU:SME-62a582
High-quality Male Elbow with precise dimensions and patented design for industrial valve connections.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
12mm Tube Outside Diameter Male Elbow with 1/2" Thread Size
$34.99
Quantity: 1
Claim Your Seller Account
12mm Tube Outside Diameter Male Elbow with 1/2" Thread Size
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SMEI Series 12mm Tube Outside Diameter Male Elbow with 1/2" Thread Size is designed to connect metric tubes to female ISO tapered threads. Made from high-quality Alloy materials, this Male Elbow from the SMEI Series features patented i-Fitting® components for perfect compression, safety, and productivity. Ideal for valve connections in high-pressure environments, this Male Elbow offers precise dimensions, durability, and compatibility with various materials. Upgrade your industrial fittings with the SMEI Series Male Elbow for reliable performance and enhanced safety.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

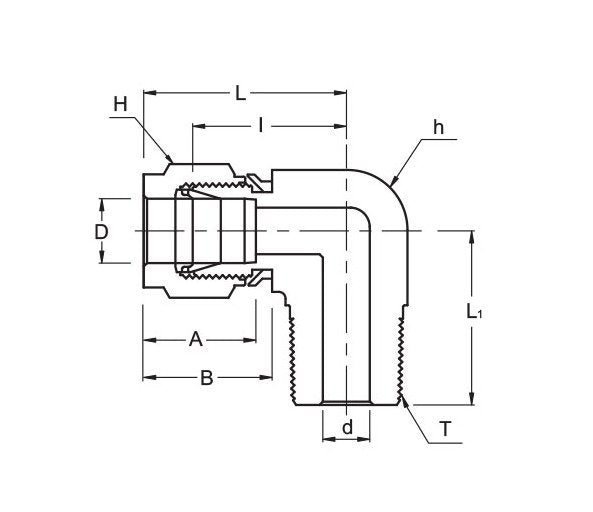

Technical Specs Connection Type
Female
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
36.0 mm
Technical Specs Dimension L1
33.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/2 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22 mm
