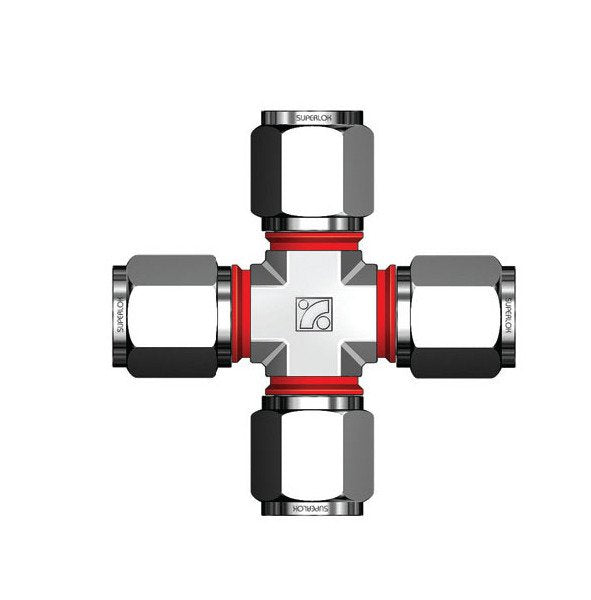

12mm Tube Outside Diameter Union Cross Fitting
12mm Tube Outside Diameter Union Cross Fitting
SKU:SUC-158ae3
Premium 12mm Tube Outside Diameter Union Cross Fitting for metric tube connections, featuring i-Fitting® design for safety and productivity.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
12mm Tube Outside Diameter Union Cross Fitting
$34.99
Quantity: 1
Claim Your Seller Account
12mm Tube Outside Diameter Union Cross Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUCI Series 12mm Tube Outside Diameter Union Cross Fitting is a versatile solution for connecting metric tubes. Crafted from premium materials such as Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures durability and reliability. Its innovative i-Fitting® design features a built-in gap gauge for perfect compression, enhancing safety in high-pressure environments. Improve productivity, reduce costs, and ensure precise installations with this industry-leading cross fitting.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

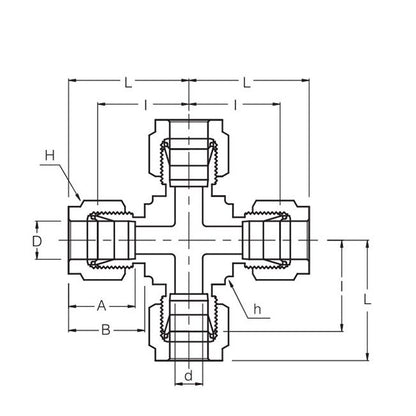

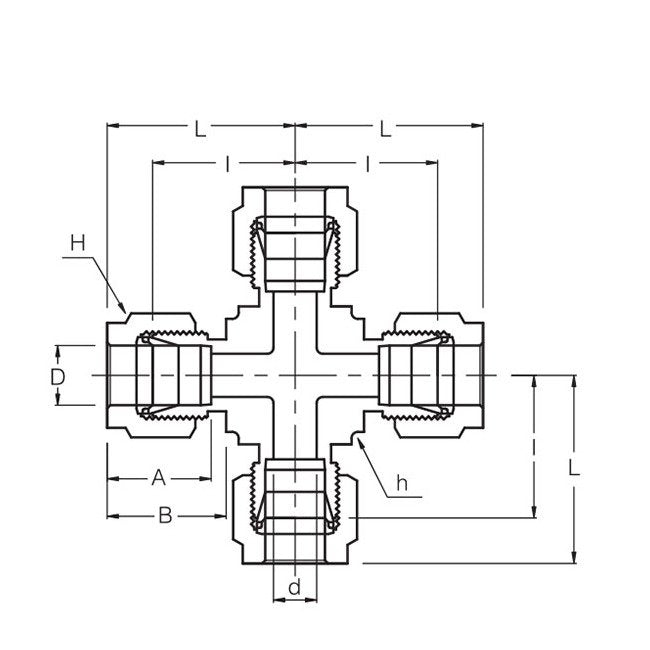

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
36.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22 mm
