12mm Tube Outside Diameter Union Elbow - SUEI Series
12mm Tube Outside Diameter Union Elbow - SUEI Series
SKU:SUE-845dbb
Enhance tube connections with precision and safety using the SUEI Series 12mm Union Elbow. Industry-changing design for high-pressure environments.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
12mm Tube Outside Diameter Union Elbow - SUEI Series
$39.99
Quantity: 1
Claim Your Seller Account
12mm Tube Outside Diameter Union Elbow - SUEI Series
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

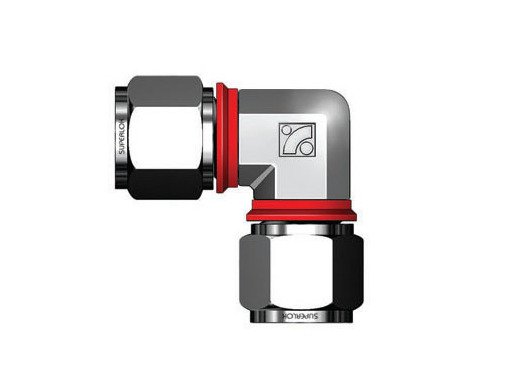

The SUEI Series 12mm Tube Outside Diameter Union Elbow is expertly designed to connect metric tubes with precision and reliability. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this union elbow ensures secure fittings suitable for a wide range of industrial applications. Its innovative i-Fitting® components, featuring a built-in gap gauge and enhanced safety measures, revolutionize installation practices, improving efficiency and cost-effectiveness. Benefit from increased productivity and reduced risks in high-pressure environments with this industry-changing design by BMT.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

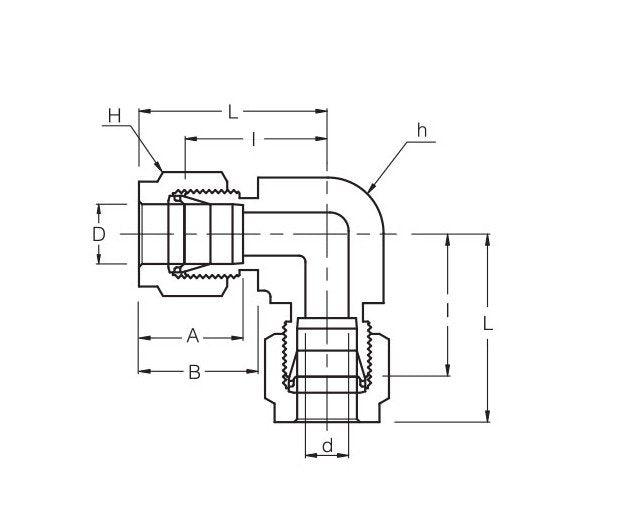

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
36.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22 mm
