12mm Tube Socket Weld Connector Fitting - SSWCI Series
12mm Tube Socket Weld Connector Fitting - SSWCI Series
SKU:SSW-aef991
Experience precision and safety with our 12mm Tube Socket Weld Connector Fitting from the SSWCI Series. Efficient, durable, and industry compliant.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
12mm Tube Socket Weld Connector Fitting - SSWCI Series
$34.99
Quantity: 1
Claim Your Seller Account
12mm Tube Socket Weld Connector Fitting - SSWCI Series
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

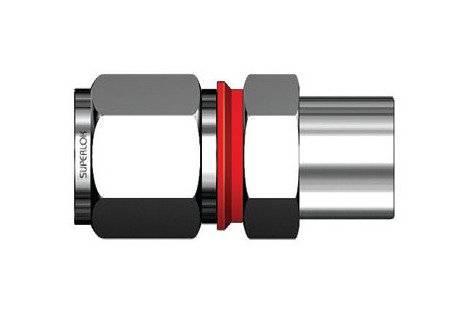

The 12mm Tube Socket Weld Connector Fitting from the SSWCI Series is designed to connect metric tubes efficiently. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures durability and reliability. Featuring i-Fitting® components, it offers precise compression, enhanced safety in high-pressure environments, and increased productivity. The innovative check ring prevents over- and under-tightening, making it ideal for valve connections. With dimensions ranging from 6mm to 25mm, this fitting is versatile and compliant with industry standards.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

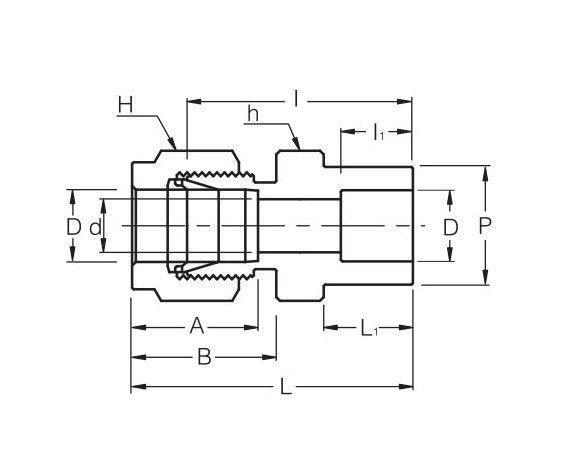

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
21.8 mm
Technical Specs Dimension I
31.0 mm
Technical Specs Dimension I1
12.70 mm
Technical Specs Dimension L
41.1 mm
Technical Specs Dimension L1
11.9 mm
Technical Specs Dimension P
19.05 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22.2 mm
