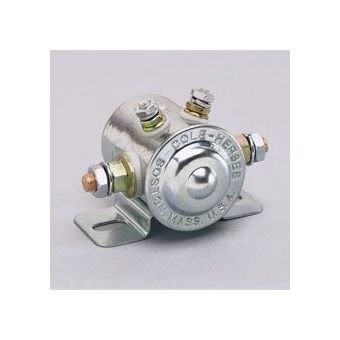

12V/200A SPST Solenoid - CVP Series
12V/200A SPST Solenoid - CVP Series
SKU:CVP-75f8f7
Reliable 12V/200A SPST Solenoid for remote-acting switching. Durable construction, efficient performance. Compliance with industry standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
12V/200A SPST Solenoid - CVP Series
$49.99
Quantity: 1
Claim Your Seller Account
12V/200A SPST Solenoid - CVP Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12V Voltage and 200 Ampere Continuous Duty Single Pole Single Throw (SPST) Solenoid from the CVP Solenoids line offers reliable remote-acting switching for various applications. Featuring plated steel housing, copper contacts, and silver contacts above 200A, this solenoid ensures durability and efficient performance. With precise dimensions for bracket mounting, copper and steel stud materials, and compliance with stringent industry standards, this solenoid is a versatile choice for both consumer and institutional buyers.
Product Specifications
Additional Information Additional Information
Housing Materials: Plated Steel. PVC Coated. Contact Materials: Copper, Above 200 A - Silver. Contact Stud Material: Copper. Contact Stud Threads: 5/16-24. Threads hex nuts and lock washers included. Coil Stud Material: Steel Coil Stud Threads: 10-32. Hex
Specifications Bracket Mounting Hole Dimensions
5/16 x 19/32 in | 7.9 x 15.1 mm
Specifications Coil Stud Material
Steel
Specifications Coil Stud Thread Size
10-32 in
Specifications Contacts
Normally Open (NO)
Specifications Contact Material
Copper
Specifications Contact Material Above 200 Ampere A Current
Silver
Specifications Contact Stud Material
Copper
Specifications Contact Stud Thread Size
5/16-24 in
Specifications Current
200 A | 65 A | 85 A
Specifications Direct Current Dc Voltage
12 V
Specifications Housing
Plated Steel
Specifications Type
Single Pole Single Throw (SPST)
