12V Center Tap Secondary Chassis Mount Power Transformers
12V Center Tap Secondary Chassis Mount Power Transformers
SKU:POW-33917e
Reliable 12V 1.000A Power Transformers with Center Tap contact type for efficient power supply solutions.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
12V Center Tap Secondary Chassis Mount Power Transformers
$79.99
Quantity: 1
Claim Your Seller Account
12V Center Tap Secondary Chassis Mount Power Transformers
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

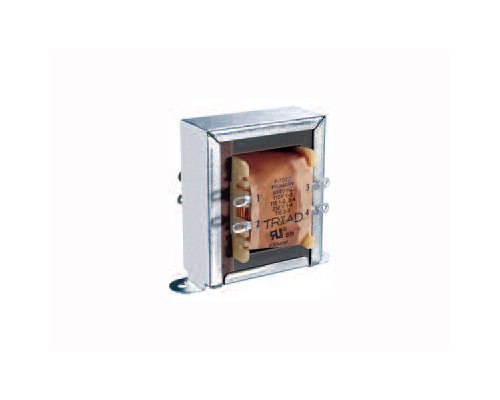

The Multiple Secondary Chassis Mount Power Transformers are designed to deliver reliable power transformation with a secondary voltage of 12.0V and a current rating of 1.000A. Featuring a Center Tap transformer contact type, these transformers are suitable for various applications requiring stable power supply. With primary voltage set at 115V and meeting rigorous 1,500V RMS test voltage standards, these transformers ensure safety and efficiency. The compact Z case type, convenient lugs connections, and precise dimensions make installation easy and efficient.

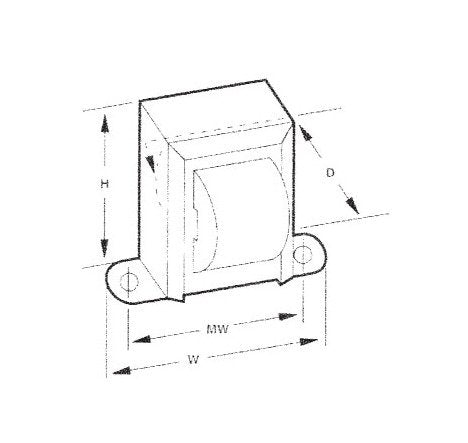

Product Specifications
Specifications Case Type
Z
Specifications Connections
Lugs
Specifications Depth D
2 1/16 in
Specifications Height H
2 3/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
1.000 A
Specifications Secondary Rms Test Voltage
1,500 V
Specifications Secondary Voltage
12.0 V
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.10 lb
Specifications Width W
2 13/16 in
