12V Insulated Intermittent Duty SPST Solenoid
12V Insulated Intermittent Duty SPST Solenoid
SKU:CVP-bad65e
Explore the durable 12V Insulated Intermittent Duty SPST Solenoid for efficient remote-acting switching in your applications.
Regular price
$54.99
Regular price
Sale price
$54.99
Unit price
per
Initiate Order
12V Insulated Intermittent Duty SPST Solenoid
$54.99
Quantity: 1
Claim Your Seller Account
12V Insulated Intermittent Duty SPST Solenoid
$54.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

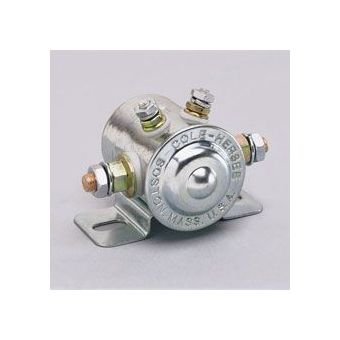

The 12V Voltage Insulated Intermittent Duty Single Pole Single Throw (SPST) Solenoid from the CVP Solenoids line offers reliable remote-acting switching. With a plated steel housing, copper contacts, and PVC coating, this solenoid ensures durability and efficient performance. It operates at 12V DC with make amperes ranging from 120A to 750A and break currents from 65A to 100A. Ideal for various applications requiring a Single Pole Single Throw (SPST) circuitry and Normally Open (NO) contacts.
Product Specifications
Additional Information Additional Information
Housing Materials: Phenolic/Plated Steel. PVC Coated. Contact Materials: Copper. Contact Threads: 5/16-24 Threads. Hex nuts and lock washers included. Terminal Material: Copper. Terminal Threads: 10-32. Hex nuts and lock washers included. Bracket mounting
Specifications Bracket Mounting Hole Dimensions
5/16 x 19/32 in | 7.9 x 15.1 mm
Specifications Break Current
65 A | 100 A
Specifications Coating
Polyvinyl Chloride (PVC)
Specifications Contacts
Normally Open (NO)
Specifications Contact Material
Copper
Specifications Contact Thread Size
5/16-24 in
Specifications Direct Current Dc Voltage
12 V
Specifications Housing
Plated Steel
Specifications Make Ampere
120 A | 750 A
Specifications Terminal Material
Copper
Specifications Terminal Thread
10-32 in
Specifications Type
Single Pole Single Throw (SPST)
