12VAC Wall Plug-In Power Supply, 1000mA, Level VI - cULus Certified
12VAC Wall Plug-In Power Supply, 1000mA, Level VI - cULus Certified
SKU:WAL-b90e78
Reliable 12VAC Power Supply with Level VI Efficiency, cULus Certified
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
12VAC Wall Plug-In Power Supply, 1000mA, Level VI - cULus Certified
$29.99
Quantity: 1
Claim Your Seller Account
12VAC Wall Plug-In Power Supply, 1000mA, Level VI - cULus Certified
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

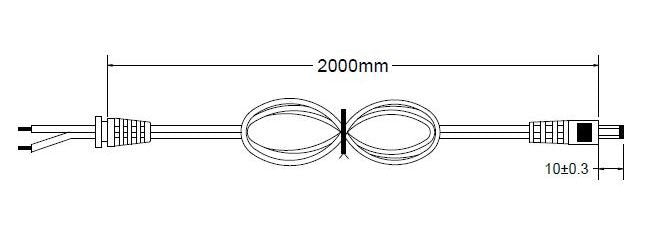

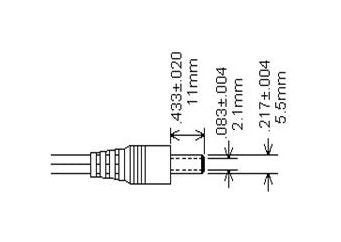

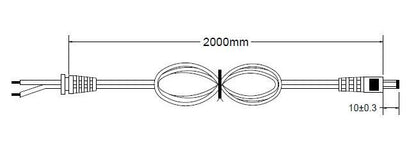

The 12VAC Wall Plug-In Power Supply is a reliable and efficient external power source designed for a range of applications. With a primary input voltage of 120VAC and an output current of 1000mA, it provides a stable 12V output. This power supply meets Class 2 UL ratings and complies with Level VI efficiency standards, ensuring optimal energy performance. The compact design features a 2-meter cord and a 5.5x2.1mm connector for easy installation. Ideal for consumer electronics and institutional needs, this power supply guarantees safety, reliability, and energy efficiency.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Mechanical Parameters Minimum Output Cord Length
6 ft
Mechanical Parameters Output Cord Size
22 AWG
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %

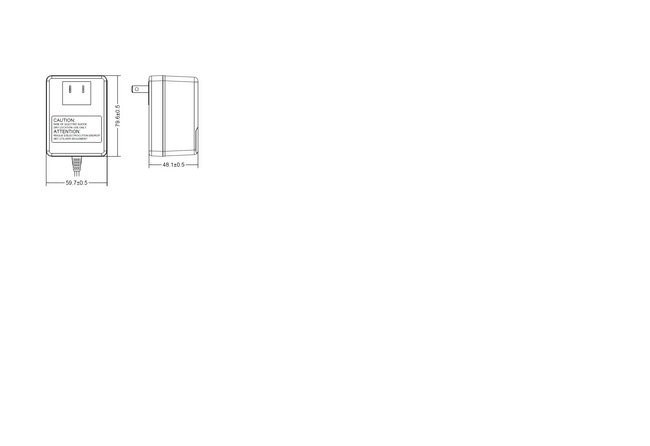

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
12.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 15.0 V
Specifications Secondary Output Current Ac
1000 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
12 V
Specifications Stock
Yes
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
