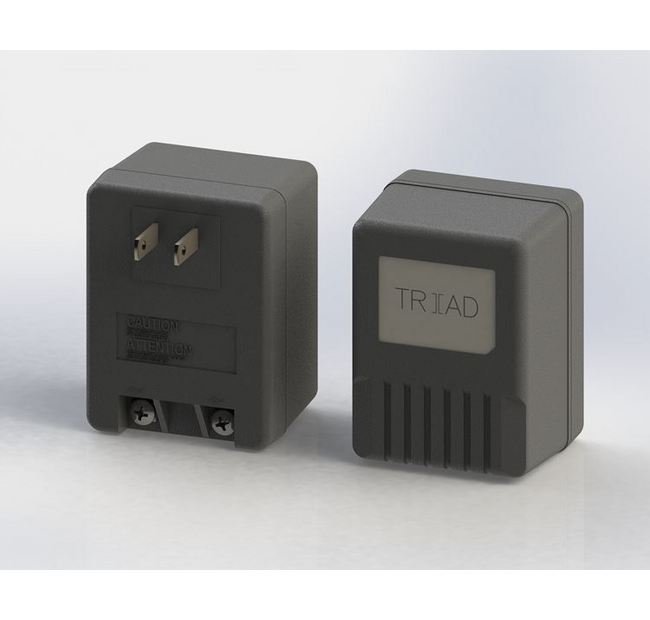

12VAC Wall Plug-In Power Supply - Level VI, 1000mA
12VAC Wall Plug-In Power Supply - Level VI, 1000mA
SKU:WAL-b04d16
Reliable 12VAC Wall Plug-In Power Supply - Level VI, 1000mA. Compact, efficient, UL/cUL certified for external power needs.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
12VAC Wall Plug-In Power Supply - Level VI, 1000mA
$29.99
Quantity: 1
Claim Your Seller Account
12VAC Wall Plug-In Power Supply - Level VI, 1000mA
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

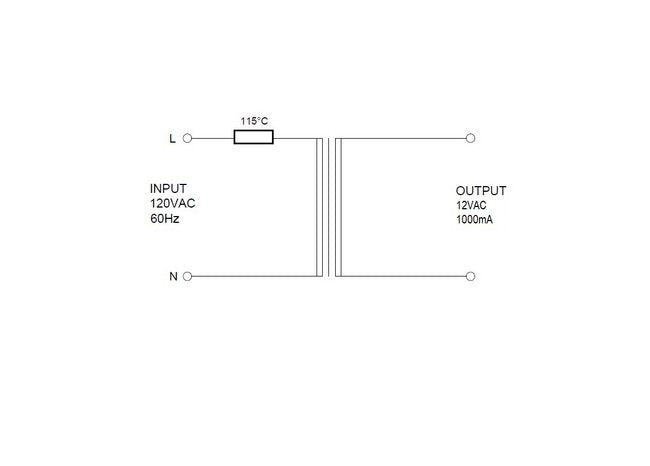

Ensure reliable power with our 12VAC Wall Plug-In Power Supply featuring 1000mA output. This Level VI compliant supply meets strict efficiency standards, with primary input voltage of 120VAC, secondary output voltage of 12VAC, and operating temperature range from -10 to +40°C. With UL/cUL certification and a compact thermoplastic enclosure, it's ideal for external power applications.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %

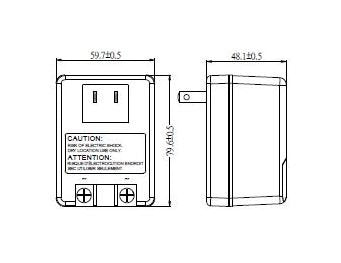

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
12.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 15.0 V
Specifications Secondary Output Current Ac
1000 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
12 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
