12VAC Wall Plug-In Power Supply, UL Level VI, 1000mA, 2m Cord
12VAC Wall Plug-In Power Supply, UL Level VI, 1000mA, 2m Cord
SKU:WAL-f11a40
Get reliable power with the 12VAC Wall Plug-In Supply. UL Level VI certified, 1000mA output, and 2m cord.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
12VAC Wall Plug-In Power Supply, UL Level VI, 1000mA, 2m Cord
$29.99
Quantity: 1
Claim Your Seller Account
12VAC Wall Plug-In Power Supply, UL Level VI, 1000mA, 2m Cord
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

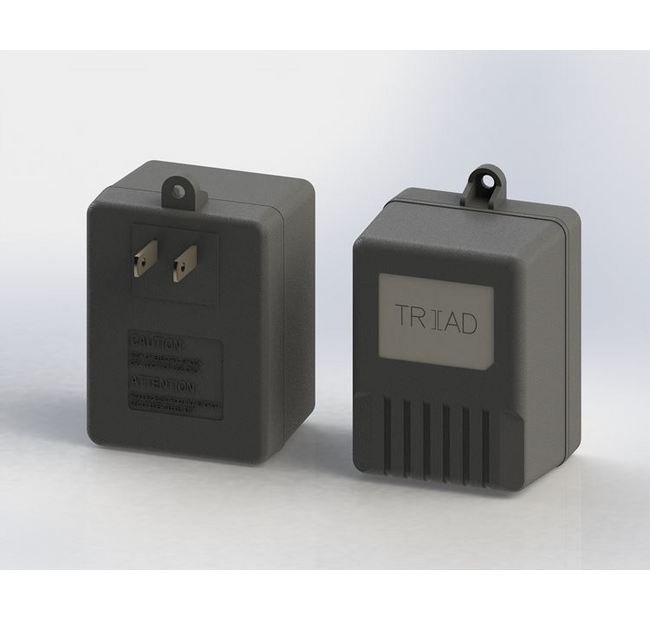

The 12VAC Wall Plug-In Power Supply is a reliable and efficient solution for your power needs. With a primary input voltage of 120VAC and a secondary output voltage of 12V, it delivers a constant current of 1000mA. This power supply meets UL Level VI standards, ensuring top-notch quality and safety. The compact design, mounting tab, and 2-meter cord make installation a breeze. Whether for consumer electronics or institutional applications, this power supply is a versatile and dependable choice.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure

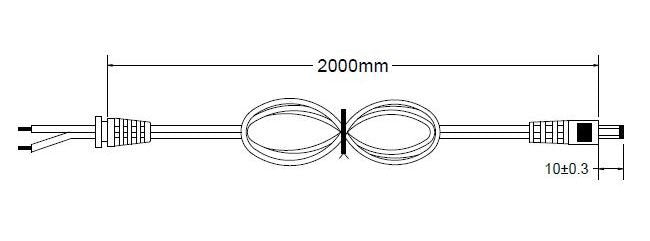

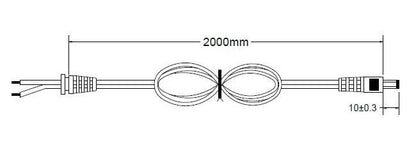

Mechanical Parameters Minimum Output Cord Length
6 ft
Mechanical Parameters Output Cord Size
22 AWG
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %

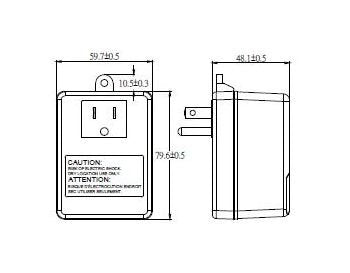

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
12.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 15.0 V
Specifications Secondary Output Current Ac
1000 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
12 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
