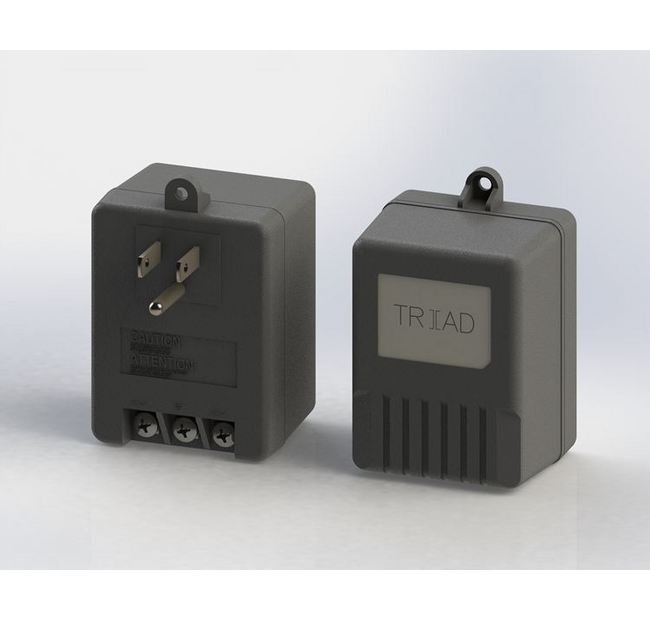

12VAC Wall Plug-In Power Supply with Mounting Tab
12VAC Wall Plug-In Power Supply with Mounting Tab
SKU:WAL-4d9053
Reliable 12VAC Wall Plug-In Power Supply with UL Level VI certification, screw terminals, and mounting tab. Ideal for external power applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
12VAC Wall Plug-In Power Supply with Mounting Tab
$24.99
Quantity: 1
Claim Your Seller Account
12VAC Wall Plug-In Power Supply with Mounting Tab
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

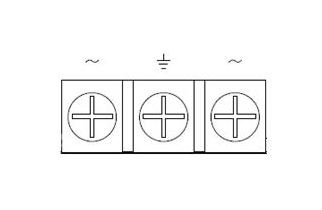

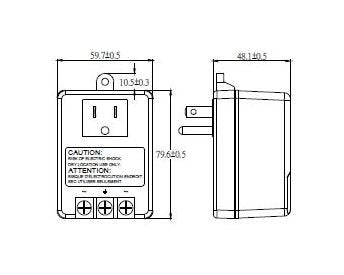

The 12VAC Wall Plug-In Power Supply is a reliable and efficient solution for providing power output in the range of 6VAC to 24VAC with a maximum current of 1000mA. With UL Level VI certification, screw terminals featuring pass-through ground, and a convenient mounting tab, this power supply ensures optimal performance and safety. Its compact dimensions of 79.6mm x 59.7mm x 48.1mm make it suitable for various external power source applications. The product complies with Class 2 UL ratings, achieving an average efficiency of 82.96% while maintaining a maximum temperature rise of 30°C at the rated load.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %
Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
12.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA

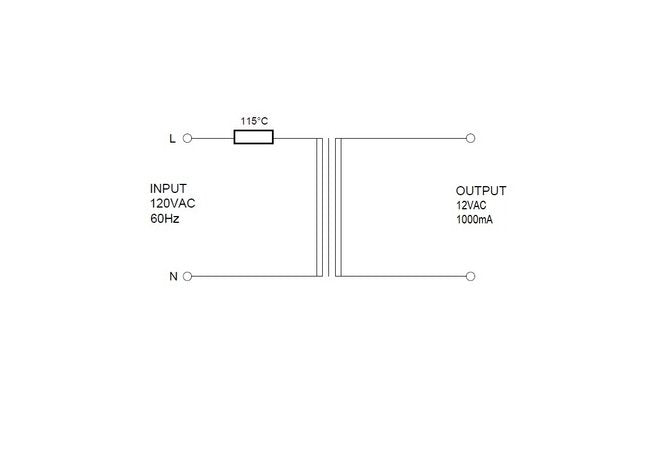

Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 15.0 V
Specifications Secondary Output Current Ac
1000 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
12 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
