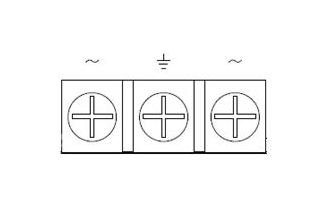

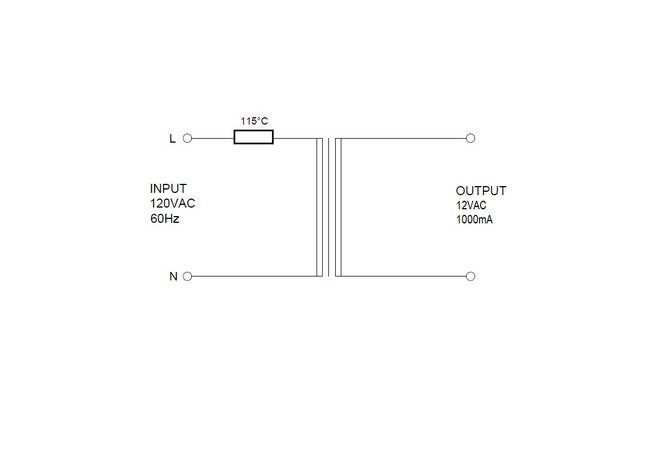

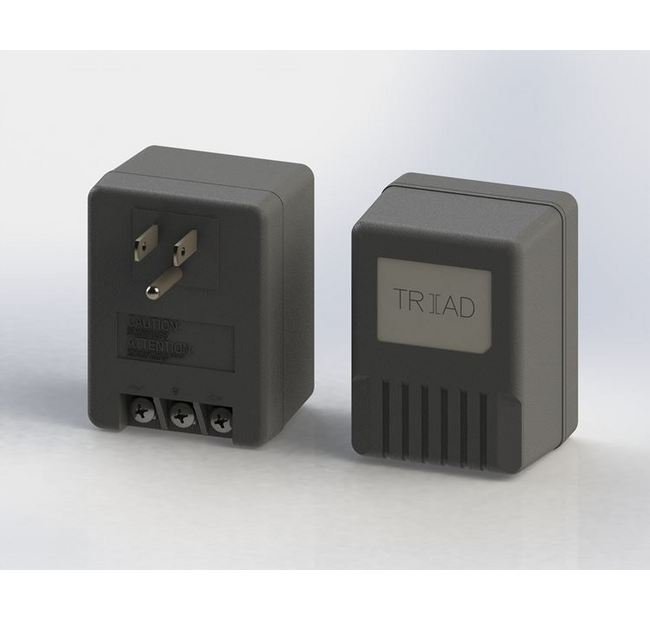

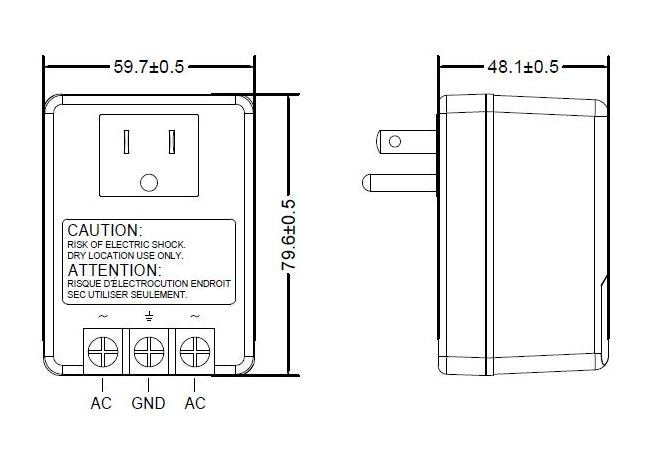

The 12VAC Wall Plug-In Power Supply is a reliable and efficient solution for powering your electronics. With a primary input voltage of 120VAC and a secondary output voltage of 12VAC at 1000mA, it ensures stable power delivery. This power supply meets UL/cUL standards, Level VI efficiency requirements, and features screw terminals with pass-through ground for secure connections. The compact dimensions of Height: 79.6mm, Width: 59.7mm, and Depth: 48.1mm make it versatile for various applications.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %
Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
12.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 15.0 V
Specifications Secondary Output Current Ac
1000 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
12 V
Specifications Stock
Yes
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
